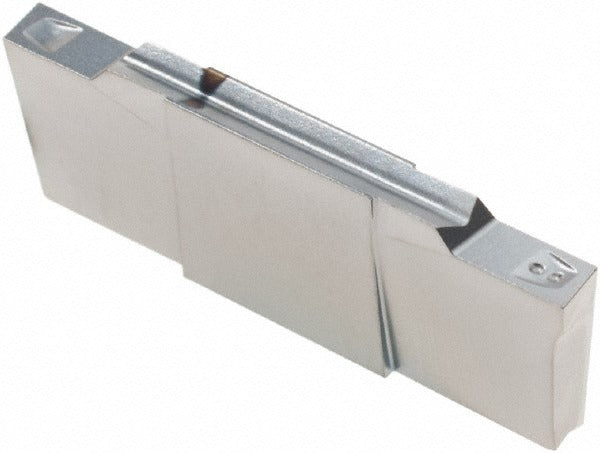

Iscar 6002931 Cutoff Insert 0.0748 in Right Hand Do-grip

Product Description

The ISCAR 6002931 is a double-ended carbide cutoff and parting insert designed for precision grooving and cutoff operations on CNC lathes and turning centers. Built in the Do-Grip series, it features a 0.0748-inch (1.90 mm) cutting width, a 12-degree right-hand lead angle, and a WP chipbreaker geometry. The insert is manufactured from solid carbide with a PVD-coated IC328 grade, making it well suited for cutting superalloys and other difficult-to-machine materials. Licensed machinists and tooling technicians install this insert into compatible Do-Grip toolholders to achieve clean, accurate parting and grooving cuts.

This insert is primarily applied in parting and cutoff operations targeting superalloy workpieces, though its IC328 grade and C2, C3, C5, and C6 material grades indicate suitability across a range of ferrous and non-ferrous applications. The right-hand configuration and 12-degree lead angle direct cutting forces away from the workpiece shoulder, improving surface finish and chip evacuation. Maximum depth of cut reaches 0.2362 inches (6.00 mm), covering most standard bar-stock parting applications encountered in production turning environments.

Key Features

• Solid carbide construction with PVD-coated IC328 grade for wear resistance in superalloy cutting
• WP chipbreaker geometry promotes reliable chip control during parting and grooving
• Double-ended design extends usable tool life per insert
• 12-degree right-hand lead angle reduces lateral cutting forces and improves surface finish
• Maximum depth of cut of 0.2362 inches (6.00 mm) suits most production bar-stock parting operations
• Compliant with ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Designed for use with ISCAR Do-Grip series toolholders that accept the DGR 1900 insert style. Verify toolholder groove width and clamping configuration before installation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully into the Do-Grip toolholder pocket and confirm the clamping screw torque follows the toolholder manufacturer's specification. Inspect the insert seat and clamping surfaces for chips or debris before seating a new insert to prevent insert rocking or premature failure.
