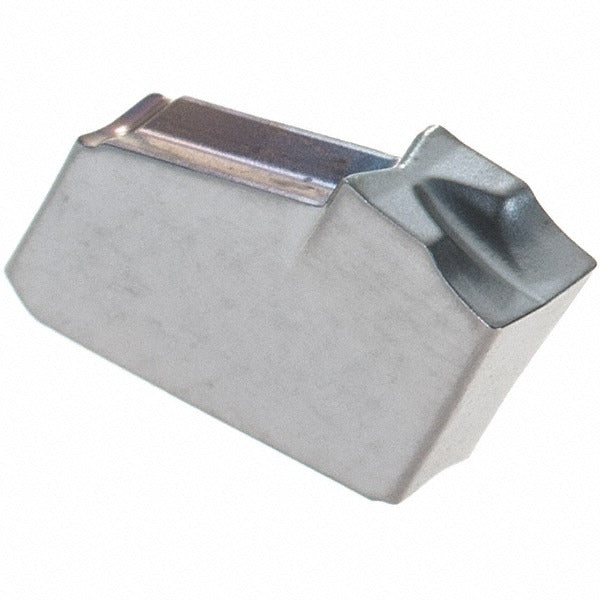

Iscar 6002857 Gfn 2.4J IC328 Carbide Cutoff Insert

Product Description

The ISCAR 6002857 is a solid carbide cutoff and grooving insert in the GFN 2.4J IC328 series. It is engineered for single-end use in parting and grooving operations on CNC lathes and turning centers. The insert carries an IC328 manufacturer grade with a PVD coating, making it well suited for cutting superalloys and other demanding workpiece materials. The cutting width measures 0.0941 inches (2.39 mm), the corner radius is 0.0063 inches (0.16 mm), and the relief angle is 7 degrees. A J chipbreaker geometry controls chip formation during deep grooving and parting cuts. The clamp-style holding method locks the insert securely in compatible Self-Grip toolholders.

This insert is intended for grooving and parting applications on metal-cutting lathes in job shop, production, and aerospace machining environments. The IC328 PVD-coated grade is optimized for ISO material groups M, P, and S, covering stainless steel, carbon and alloy steels, and superalloys. The neutral lead angle and neutral hand orientation allow use in straight-plunge cutoff and grooving operations without lateral cutting force bias. It is most commonly installed by machinists and CNC operators performing interrupted or continuous parting cuts on turned components.

Key Features

• IC328 PVD-coated solid carbide grade rated for superalloys and stainless steel (ISO M, P, S)
• 0.0941 inch (2.39 mm) cutting width for precise grooving and parting
• J chipbreaker geometry for effective chip control in grooving operations
• Neutral lead angle and neutral hand for straight-plunge parting cuts
• Clamp holding method compatible with ISCAR Self-Grip toolholder series
• Relief angle of 7 degrees reduces flank wear in difficult materials

Compatibility

Designed for use with ISCAR Self-Grip clamping toolholders that accept GFN-style inserts with a 2.4 mm size code. Verify toolholder seat dimensions and insert pocket specifications before installation.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Use the appropriate ISCAR insert seating tool or torx key to engage the clamping mechanism without damaging the cutting edge. Inspect the toolholder pocket for chips or debris before seating the insert.
