Iscar 6002809 Dgr 3102C-6D IC808 Carbide Cutoff Insert

Product Description

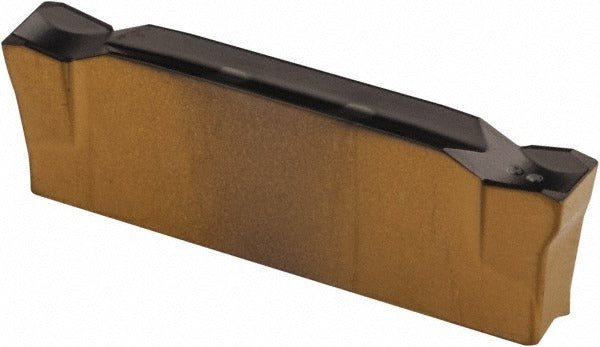

The ISCAR 6002809 is a solid carbide double-ended cutoff and parting insert from the Do-Grip series, designed for grooving and parting operations on CNC lathes and turning centers. It carries the IC808 manufacturer grade with a PVD-applied multilayer coating of TiAlN, AlTiN, and TiN for wear resistance and thermal stability at the cutting edge. The insert features a 3.10 mm (0.122 inches) cutting width, a 6-degree right-hand lead angle, and a 0.20 mm (0.0079 inches) corner radius. The chipbreaker style is C. Overall length is 21.00 mm (0.827 inches). This insert is sold individually with a minimum order quantity of 10 units.

The 6002809 is intended for parting and cutoff applications in production machining environments where consistent chip control and tool life are required. The IC808 grade and PVD coating make it suitable for a broad range of workpiece materials classified under ISO material groups H, K, M, P, and S, covering hardened steels, cast irons, stainless steels, carbon steels, and heat-resistant superalloys. The double-ended design provides two usable cutting edges per insert, reducing per-edge tooling cost in high-volume turning operations.

Key Features

• Solid carbide construction with IC808 manufacturer grade for high hardness and edge retention
• PVD coating of TiAlN, AlTiN, and TiN provides thermal barrier and wear resistance
• 3.10 mm (0.122 inches) cutting width with 0.20 mm corner radius for precise parting cuts
• 6-degree right-hand lead angle directs cutting forces away from the workpiece shoulder
• Double-ended insert delivers two cutting edges per unit
• Maximum depth of cut 18.00 mm (0.709 inches) for parting larger-diameter bar stock
• Conforms to ISO 13399 tool data representation standards

Compatibility

Designed for use with ISCAR Do-Grip series parting and grooving toolholders that accept DGR-style inserts with a 3102 size code. Verify toolholder insert pocket specifications before installation.

Installation Notes

Installation of carbide parting inserts should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing inserts. Use the correct torque wrench and clamping screw specified by the toolholder manufacturer — do not overtighten, as this can fracture the carbide insert body. Inspect the insert pocket and clamping surfaces for chips or debris before installation to ensure full, even seating.
