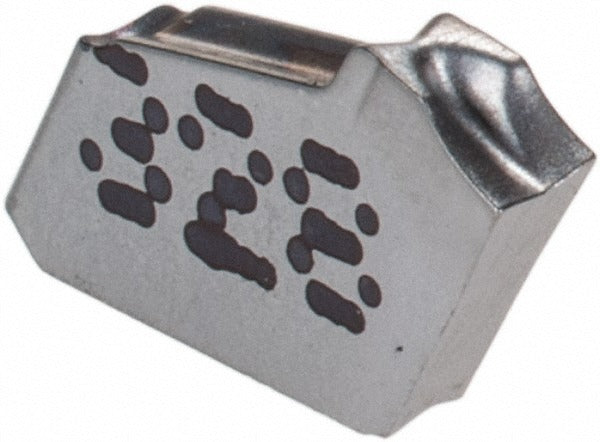

Iscar 6002741 Carbide Cutoff Insert 1.6mm Self-grip

Product Description

The ISCAR 6002741 is a solid carbide cutoff and parting insert in the Self-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It features a 1.6mm (0.0630 inch) cutting width, a 6-degree right-hand lead angle, and a 0.02mm (0.0008 inch) corner radius for tight-tolerance work. The IC328 grade substrate carries a PVD-applied TiCN coating, making it well suited for high-temperature cutting in superalloy and difficult-to-machine materials. It is held in place by a clamp-style toolholder compatible with the Self-Grip system. Machinists and tool-crib technicians working on aerospace, medical, and energy components are the primary users of this insert.

This insert is intended for single-use parting and cutoff applications where tight groove geometry and surface finish are critical. Its JS chipbreaker geometry is optimized for chip control in superalloys and other high-strength workpiece materials. The right-hand lead angle and 7-degree relief angle support consistent chip evacuation during deep radial infeed. It is packaged individually and must be ordered in multiples of 10 units per ISCAR minimum order policy.

Key Features

• IC328 grade solid carbide substrate with PVD TiCN coating for extended tool life in superalloys
• 1.6mm (0.0630 inch) cutting width for precise groove and parting dimensions
• JS chipbreaker geometry engineered for effective chip control in difficult materials
• 6-degree right-hand lead angle with 7-degree relief angle for clean chip evacuation
• 0.02mm (0.0008 inch) corner radius for sharp, accurate corner definition
• Clamp-held Self-Grip series retention for secure, repeatable insert positioning

Compatibility

Designed for use with ISCAR Self-Grip series clamp-style toolholders that accept GFR-style inserts. Confirm toolholder bore and clamping specifications before ordering.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or toolroom technician with the machine fully powered down and the spindle locked. Use the appropriate ISCAR torx or hex key to seat the clamp to the toolholder manufacturer's specified procedure. Inspect the insert pocket for chips, burrs, or wear before seating a new insert. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
