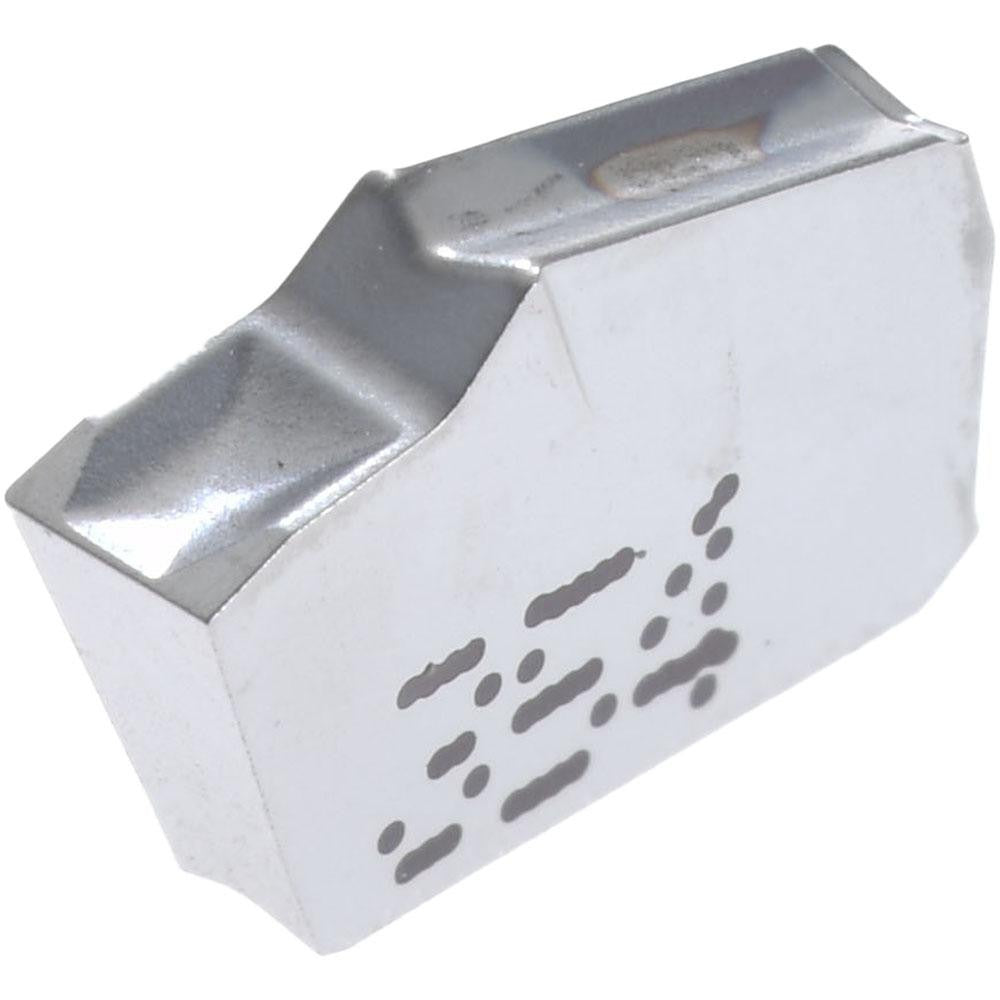

Iscar 6002641 Cutoff Insert Carbide 2.4mm Right Hand

Product Description

The ISCAR 6002641 is a single-end carbide cutoff insert designed for grooving and parting-off operations on CNC turning centers and manual lathes. Manufactured to the GTR-2.4-4D insert style with an IC354 PVD-coated carbide grade, this insert delivers a 2.4 mm (0.0945 inch) cutting width with a 4-degree right-hand lead angle and a 7-degree relief angle. The IC354 grade is a coated carbide rated for C5 and C6 material groups, making it suitable for steel and stainless steel cutoff work. It is held in place by a clamp-style Self-Grip toolholder system. Machinists and CNC operators in production and job-shop environments install this insert as a consumable cutting tool.

This insert is used in cutoff and parting applications on turning equipment where precise groove width control is required. The 2.4 mm seat size and right-hand insert hand make it a direct fit for compatible ISCAR Self-Grip toolholders and blade bodies designed around the GTR insert series. It is suited for light to medium-duty parting on ferrous materials where a PVD-coated C5 or C6 carbide grade is specified. Sold individually, with a minimum order quantity of 10 units.

Key Features

• 2.4 mm (0.0945 inch) cutting width for precise parting and grooving
• IC354 PVD-coated carbide grade rated for C5 and C6 material groups
• 4-degree right-hand lead angle with 7-degree relief angle
• 0.16 mm corner radius for controlled chip formation at the cut edge
• Clamp-held Self-Grip series mounting for secure insert retention
• Single-end insert design — discard after one cutting edge is worn

Compatibility

Designed for use with ISCAR Self-Grip series toolholders and blade bodies configured for the GTR insert style with a 2.4 mm insert seat size.

Installation Notes

Insert replacement should be performed with the machine fully stopped and all spindle rotation locked out per shop lockout/tagout procedures. Use the correct torque wrench or clamping key specified for the Self-Grip toolholder to seat the insert without cracking the carbide. Inspect the insert pocket and clamping surfaces for chips or debris before seating a new insert. Handle carbide inserts carefully to avoid edge chipping prior to use.
