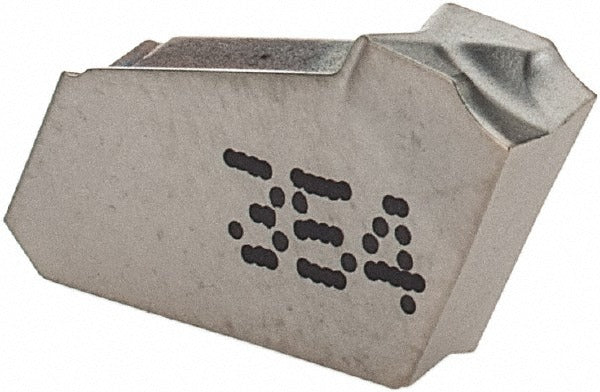

Iscar 6002563 Cutoff Insert 3 Mm GFR3JS-8D IC354 Carbide

Product Description

The ISCAR 6002563 is a solid carbide cutoff and parting insert designed for precision grooving and cutoff operations on CNC lathes and turning centers. Built to the Self-Grip series standard, this insert features a 3.00 mm cutting width (0.1181 inches) and an 8-degree right-hand lead angle. The IC354 carbide grade is applied via PVD coating, making it well-suited for demanding cuts in stainless steel and steel workpieces. The JS chipbreaker geometry supports chip control during parting operations. This insert is installed by machining professionals and tool-and-die technicians working with precision turning equipment.

This insert is intended for use in parting and grooving applications on ferrous materials, particularly stainless steel and general steel stock. The right-hand lead angle configuration suits standard lathe setups where the cutting tool approaches from the right. It is sized for insert seat size 3 holders within the ISCAR Self-Grip clamping system and is sold individually, though a minimum order quantity of 10 units applies. It is a single-end insert and is not reversible for a second cutting edge.

Key Features

• 3.00 mm (0.1181 inch) cutting width for precise parting and grooving
• IC354 carbide grade with PVD coating for extended tool life on steel and stainless steel
• 8-degree right-hand lead angle for directional chip control
• JS chipbreaker geometry promotes reliable chip evacuation during cutoff operations
• 7-degree relief angle with 0.03 mm corner radius for a clean cutting edge
• Clamp-style holding method compatible with Self-Grip series toolholders

Compatibility

Designed for use with ISCAR Self-Grip series clamping toolholders that accept insert seat size 3. Rated for primary workpiece materials including stainless steel (ISO material code M) and steel (ISO material code P), and conforms to ISO 13399 standards. The manufacturer catalog number for this insert is GFR 3JS-8D.

Installation Notes

This insert is installed by qualified machinists and CNC tooling technicians. Always power down and lock out the machine spindle before changing inserts. Use the correct clamp torque tool specified for the Self-Grip holder to avoid insert seat damage. Inspect the insert pocket and clamping surfaces for chips or debris before seating the new insert.
