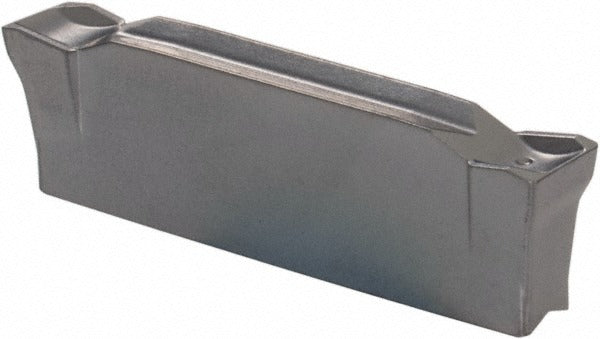

Iscar 6002451 Cutoff Insert 3.1mm Left Hand Do-grip

Product Description

The ISCAR 6002451 is a double-ended solid carbide cutoff and parting insert designed for use in Do-Grip grooving and parting toolholders. It carries manufacturer grade IC328, a PVD-coated carbide grade engineered for cutting superalloys and other difficult-to-machine materials. The insert features a 3.10 mm cutting width (0.1220 inches), a 6-degree left-hand lead angle, and a corner radius of 0.20 mm. The DGL-style insert measures 21.00 mm (0.8268 inches) in overall length and delivers a maximum depth of cut of 18.00 mm (0.7087 inches). Installation is performed by qualified machinists working with CNC lathes or manual turning centers.

This insert is suited for parting and cutoff operations on superalloys, stainless steels, and other challenging workpiece materials in production and job-shop turning environments. The C chipbreaker geometry supports chip control during parting operations where chip evacuation is critical. The left-hand orientation makes it appropriate for specific toolholder configurations that require angled approach to the workpiece. It conforms to ISO 13399 standards, supporting tool assembly data interoperability in CAM and tooling management systems.

Key Features

• Solid carbide construction with PVD coating in IC328 grade for superalloy and difficult-material cutting
• 3.10 mm cutting width with 6-degree left-hand lead angle for angled parting approaches
• Double-ended design extends usable insert life
• C chipbreaker geometry aids chip control in parting and cutoff applications
• Maximum depth of cut of 18.00 mm suits a wide range of workpiece diameters
• Conforms to ISO 13399 for integration with digital tooling management systems

Compatibility

Designed for use in ISCAR Do-Grip series grooving and parting toolholders that accept DGL-style inserts with a 3.10 mm blade width. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation and replacement of carbide parting inserts is performed by qualified machinists or toolroom personnel. Power down and lock out the machine spindle before changing inserts. Seat the insert fully into the toolholder pocket and verify clamping force before resuming cuts. Follow the toolholder manufacturer's torque and clamping specifications for the Do-Grip system.
