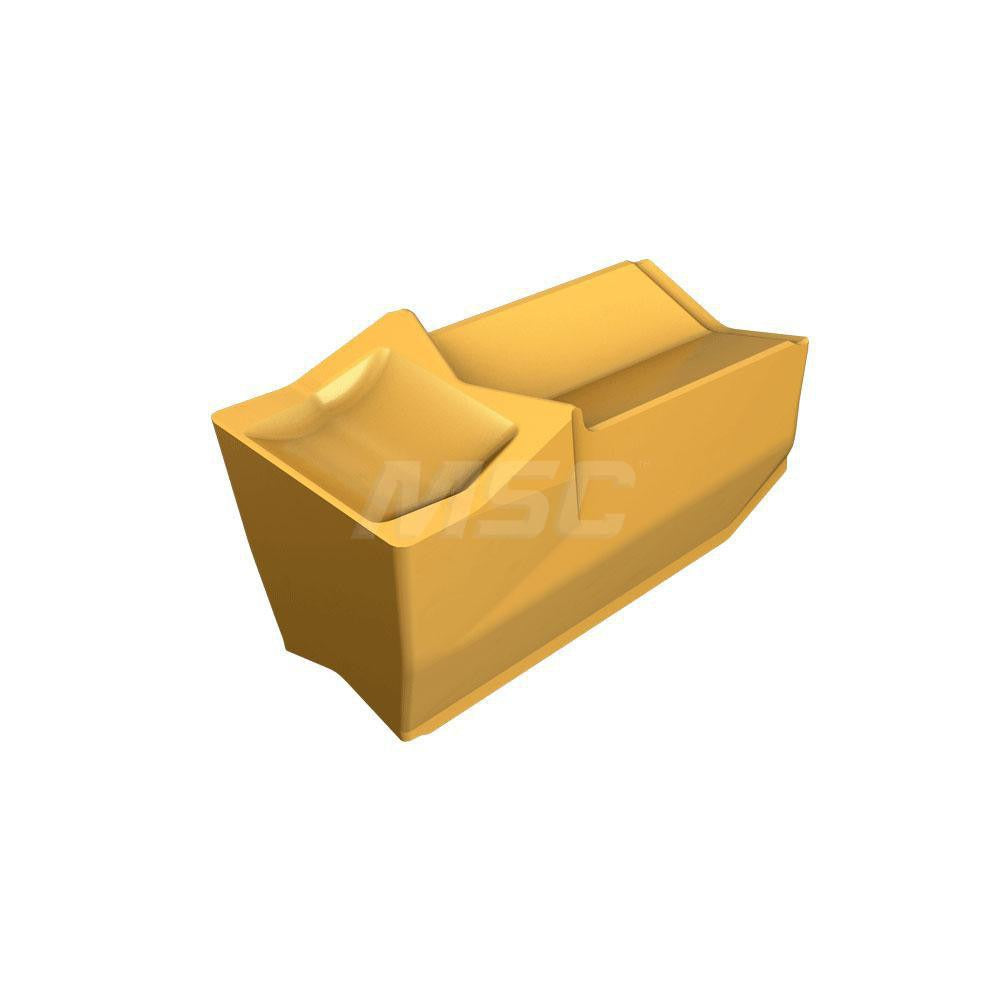

Iscar 6000006 Grooving Insert GFF2 IC20 Solid Carbide

Product Description

The ISCAR 6000006 is a solid carbide grooving insert in the Self-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. This insert carries the IC20 uncoated carbide grade and features a 0.0827-inch (2.10 mm) cutting width with a neutral hand orientation. A 7-degree positive rake angle reduces cutting forces and supports clean chip formation across a range of workpiece materials. The insert seats and locks via the Self-Grip holding method, which provides rigid tool engagement without external clamping hardware. It is installed by machinists and toolroom technicians on compatible grooving toolholders.

This insert is suited for universal application across multiple material families, including hardened materials, cast iron, steel alloys, non-ferrous metals, and superalloys, consistent with its H, K, M, N, and S primary workpiece material codes. The IC20 uncoated grade is well suited to light finishing and medium grooving cuts where edge sharpness and dimensional accuracy are priorities. Typical installation scenarios include OD grooving, face grooving, and parting on production turning equipment. Each package contains one insert; the minimum order quantity is 10 pieces.

Key Features

• Solid carbide IC20 uncoated grade for sharp edge retention on diverse workpiece materials
• 0.0827-inch (2.10 mm) cutting width for precise groove dimension control
• 7-degree positive rake angle reduces cutting forces and supports clean chip flow
• Neutral hand orientation for flexible setup on both OD and face grooving applications
• Self-Grip holding method locks the insert securely without additional clamping
• 0.0079-inch (0.20 mm) corner radius for controlled groove corner geometry
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with ISCAR Self-Grip series grooving toolholders accepting size 2 inserts in the GFF style. Consult the ISCAR Self-Grip toolholder catalog to confirm holder compatibility before ordering.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing the insert. Ensure the toolholder pocket is clean and free of chips or debris before pressing the insert into the Self-Grip seat. Verify insert seating and orientation visually before resuming cutting operations.
