Iscar 5996066 Threading Insert 18 Tpi Npt IC228

Product Description

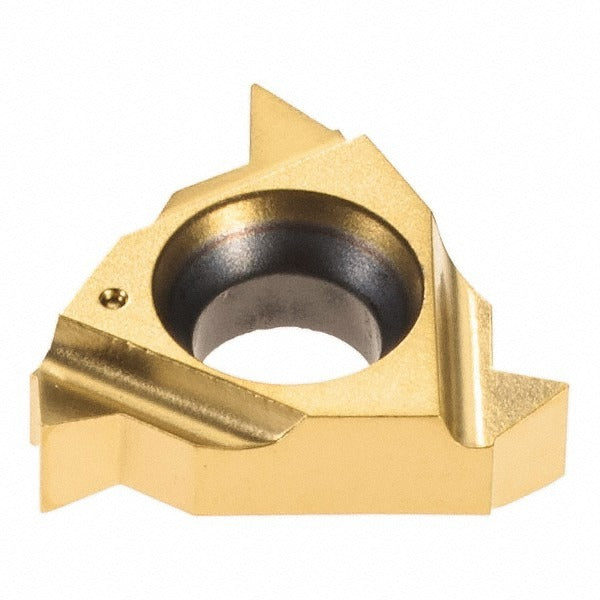

The ISCAR 5996066 is a solid carbide laydown threading insert designed for cutting internal NPT threads on a lathe or threading center. It carries the IC228 grade with a PVD-applied TiCN/TiN coating, making it suitable for a wide range of workpiece materials including steel, stainless, cast iron, nonferrous alloys, and high-temperature alloys. The insert produces right-hand internal threads at 18 threads per inch to the NPT standard. With an inscribed circle of 3/16 inches (0.1875 inches) and a thickness of 0.079 inches, the 08IR insert style seats securely in compatible toolholders. Licensed machinists, CNC lathe operators, and precision threading specialists typically specify this insert for pipe-thread applications requiring consistent thread form and tool life.

The 5996066 is used in production and job-shop threading operations where NPT internal pipe threads are required. Typical applications include threading pipe fittings, valve bodies, manifolds, and fluid-system components in materials ranging from carbon steel and alloy steel to aluminum, titanium, and other universal workpiece classes. The IC228 grade is positioned as a multi-material performer, making it a practical stock insert for shops that run varied materials on the same program. This insert ships in a package quantity of one and must be ordered in multiples of five to meet the minimum order quantity requirement.

Key Features

• Solid carbide substrate with IC228 grade for wear resistance across universal workpiece materials
• PVD TiCN/TiN coating for improved tool life and surface finish on threaded profiles
• Right-hand cut, internal thread orientation for NPT pipe-thread production
• 18 TPI NPT thread form for standard pipe-thread engagement
• 08IR insert style with 3/16-inch inscribed circle fits standard 08IR-series toolholders
• Meets ISO 13399 tooling data standards for integration with CAM and tool-management systems

Compatibility

Designed for use in 08IR-series internal threading toolholders that accept laydown-style threading inserts. The insert is rated for universal primary workpiece material codes H, K, M, N, P, and S per the input data. Verify toolholder pocket geometry and insert retention method before mounting.

Installation Notes
