Iscar 5920066 Threading Insert 60 Deg 1/2 in Ic Carbide

Product Description

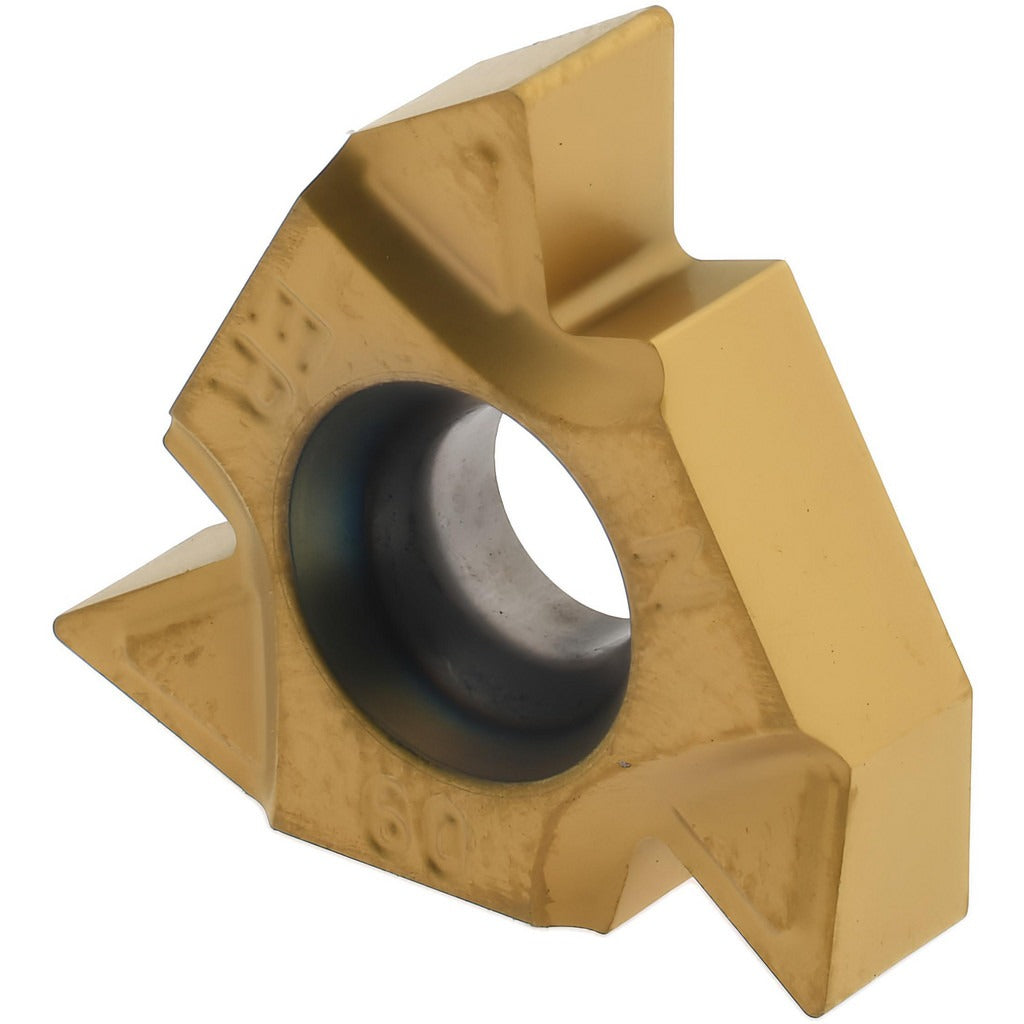

The ISCAR 5920066 is a laydown threading insert designed for external partial profile 60-degree thread cutting on CNC lathes and turning centers. Built from solid carbide with a PVD-applied TiN coating and ISCAR IC250 grade, this insert handles a thread pitch range of 3.50 to 5.00 mm (7 to 5 TPI) in right-hand orientation. The 22ER insert style fits standard 22-series external threading toolholders. With an inscribed circle of 0.5000 inches (1/2 inch) and a thickness of 0.1880 inches, this insert delivers consistent thread form across a variety of workpiece materials without requiring a full-profile setup.

This insert is suited for external threading operations in general machining and production turning environments, including both job shops and high-volume manufacturing. It is rated for use on cast iron, stainless steel, and carbon and alloy steels, covering ISO material codes K, M, and P. The M-style chipbreaker promotes controlled chip evacuation during threading passes. Applications include threaded shaft production, fittings, fastener components, and any turned part requiring a 60-degree unified or metric thread form at coarser pitches. Licensed machinists and CNC operators working with lathes equipped for laydown-style insert tooling will find this a direct fit for standard 22ER holders.

Key Features

• Solid carbide construction with PVD TiN coating for wear resistance on ferrous materials
• IC250 manufacturer grade rated for cast iron, stainless steel, and steel (ISO K, M, P)
• Right-hand external threading, 60-degree partial profile, 7 to 5 TPI range
• M-style chipbreaker for controlled chip flow during threading cuts
• 22ER insert style with 1/2 inch inscribed circle fits standard 22-series external threading toolholders
• Conforms to ISO 13399 cutting tool data representation standard

Compatibility

Designed for use in 22ER-series external threading toolholders that accept laydown-style inserts. Compatible with workpiece materials including cast iron, stainless steel, and steel. Thread pitch coverage of 3.50 to 5.00 mm corresponds to the 7 to 5 TPI range for coarse external threads.

Installation Notes
