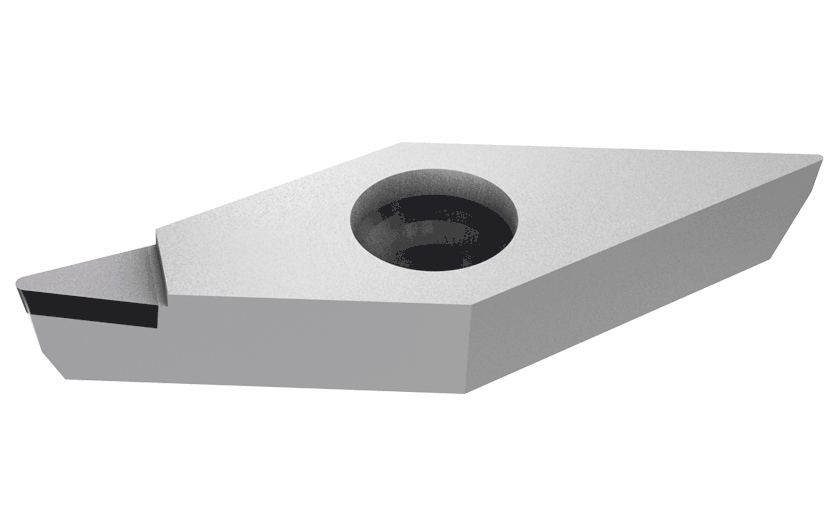

Iscar 5700457 VCGT-331 ID5 PCD Insert

Brand: ISCAR
SKU: 5700457
Availability: Out Of Stock
$184.01
$184.01
LTL Delivery

This product weighs 454 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Iscar VCGT-331 ID5 PCD Insert, MPN 5700457, is a precision tool designed for fine finishing on non-ferrous materials. It features a 35-degree diamond insert shape with a clearance angle of 7 degrees. The insert's size is 0.375 inches and it has a corner radius of 0.016 inches.

  • Insert Material: PCD
  • Insert Coating: Uncoated
  • Max Depth of Cut: 0.118 inches

Product Highlights

This insert is suitable for various machining applications focusing on fine finishing and medium operations.

Product Information

Standard Information

  • Brand: Iscar
  • Insert Style: VCGT

Technical Specifications

  • Insert Shape: 35 degrees diamond
  • Clearance Angle: 7 degrees positive
  • Insert Thickness: 0.187 inches
  • Insert Edge Length: 0.654 inches
  • Min Depth of Cut: 0.004 inches
  • Max Depth of Cut: 0.118 inches
  • Min Feed: 0.002 inches
  • Max Feed: 0.0118 inches
Iscar 5700457 VCGT-331 ID5 PCD Insert

Vendor: ISCAR

Iscar 5700457 VCGT-331 ID5 PCD Insert

$184.01

Vendor: ISCAR

Iscar 5700457 VCGT-331 ID5 PCD Insert

$184.01
