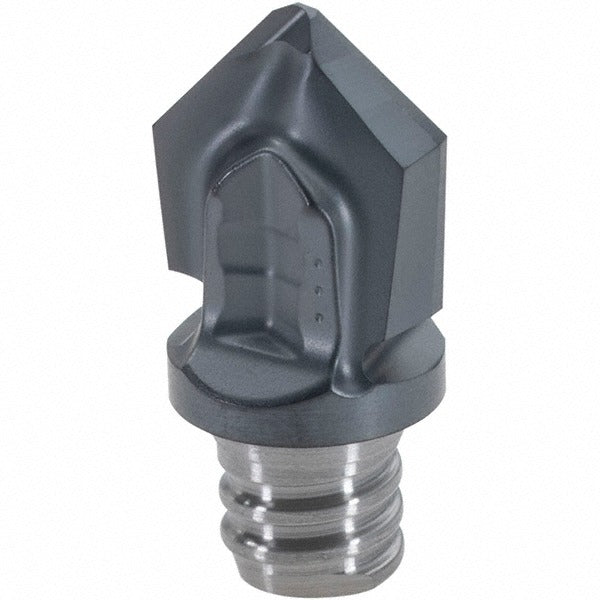

Iscar 5668527 Chamfer Milling Tip 10mm 2 Flute Carbide IC908

Product Description

The ISCAR 5668527 is a chamfer replaceable milling tip from the Multimaster MM HCD series, designed for modular milling tool systems used in precision metal-removal operations. Built from sub-micrograin carbide in manufacturer grade IC908, it features a TiAlN coating applied via PVD process for extended tool life and heat resistance in demanding cuts. The tip has a 10 mm cutting diameter, a 45-degree chamfer angle, an included angle of 140 degrees, and a 2-flute right-hand configuration. Maximum depth of cut is 4.5 mm. Licensed machinists and CNC operators install this tip into compatible Multimaster holders for high-performance chamfering on ferrous and non-ferrous workpieces.

This milling tip is suited for chamfering operations on a wide range of primary workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. It is appropriate for both roughing and finishing chamfer passes in industrial machining environments. The lead angle is 90 degrees, and the extension from holder is 14 mm (0.551 inches), making it well-matched to close-tolerance chamfering setups on CNC machining centers in job-shop and production environments. No coolant-through capability is included on this tip.

Key Features

• Sub-micrograin carbide substrate with IC908 grade for toughness and wear resistance
• TiAlN coating via PVD process for thermal protection in high-speed cuts
• 45-degree chamfer angle with 140-degree included angle for precise edge preparation
• 2-flute right-hand cut geometry for efficient chip evacuation
• 10 mm cutting diameter with 4.5 mm maximum depth of cut
• Compatible with steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials
• Meets ANSI standards; no chipbreaker geometry

Compatibility

Designed for use with ISCAR Multimaster modular milling holders accepting the MM HCD tip style. Insert size designation is 100-090-2T06. Verify holder compatibility with the MM HCD100-090-2T06-N full tip description before ordering.

Installation Notes

Installation is performed by machinist or CNC setup personnel following standard Multimaster tip-change procedures. De-energize and lock out the machine spindle before removing or seating the milling tip. Ensure the holder shank and tip seating surfaces are clean and free of chips before torquing. Follow the tool manufacturer torque specifications provided with the holder for the specific tip size to avoid over-torque or under-seating.
