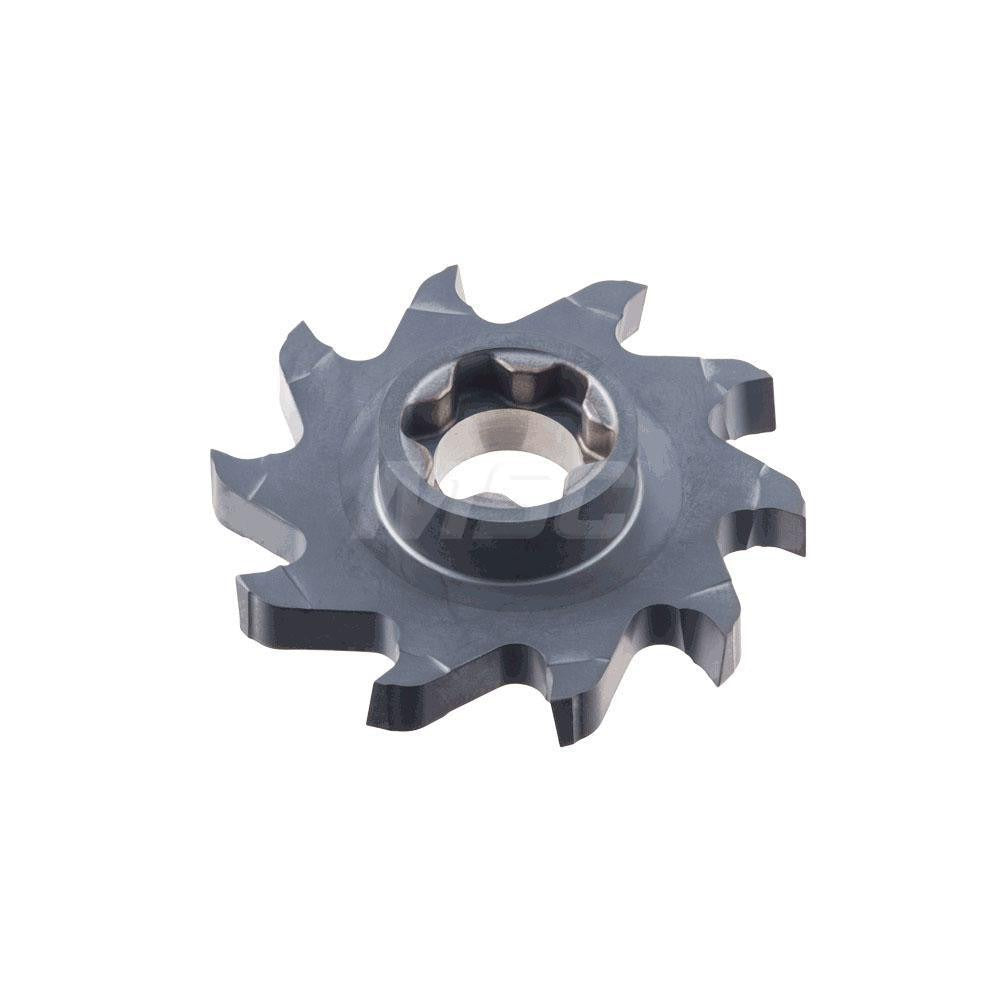

Iscar 5667801 T-slot Milling Tip 1.488 in 10 Flute IC908

Product Description

The ISCAR 5667801 is a T-slot replaceable milling tip engineered for horizontal groove milling in metal cutting applications. Built from sub-micrograin carbide in the IC908 manufacturer grade, this tip features a PVD-applied TiAlN coating that resists heat and wear at elevated cutting speeds. The SD-SP style geometry delivers a 90-degree lead angle and a 10-flute configuration across a 1.488-inch cutting diameter, producing a 0.187-inch cutting width per pass. Right-hand cut orientation and a 0.016-inch corner radius keep edge engagement controlled. Licensed machinists and CNC tooling technicians are the primary installers of this insert type.

This milling tip is suited for T-slot machining on milling centers running steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The SD-SP series design seats into compatible ISCAR SD-SP style milling bodies, allowing quick tip exchange without disturbing the toolholder setup. It is appropriate for both production and job-shop environments where consistent slot geometry and repeatable depth of cut are required. The 0.393-inch functional length supports a maximum depth of cut of 0.393 inches per pass.

Key Features

• Sub-micrograin IC908 carbide grade with PVD TiAlN coating for extended tool life in ferrous and hard materials
• 10-flute configuration on a 1.488-inch cutting diameter for high feed rates in T-slot operations
• 0.187-inch cutting width and 0.393-inch maximum depth of cut in a single pass
• 90-degree lead angle and right-hand cut for direct slot wall engagement
• 0.016-inch corner radius reduces stress concentration at the cutting edge
• Replaceable tip design allows fast insert changes on compatible SD-SP milling bodies

Compatibility

Designed for use with compatible ISCAR SD-SP series T-slot milling bodies accepting the D1.50-H187D insert size. Verify toolholder seat geometry and clamping system before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or removing any replaceable milling tip. Use the manufacturer-specified torx or clamping key to secure the tip to the toolholder body - do not over-tighten by hand or with non-specified tools. Confirm seat cleanliness and inspect the pocket for chips or wear before mounting the new tip.
