Iscar 5667769 Milling Insert IC830 Solid Carbide Triangle

Product Description

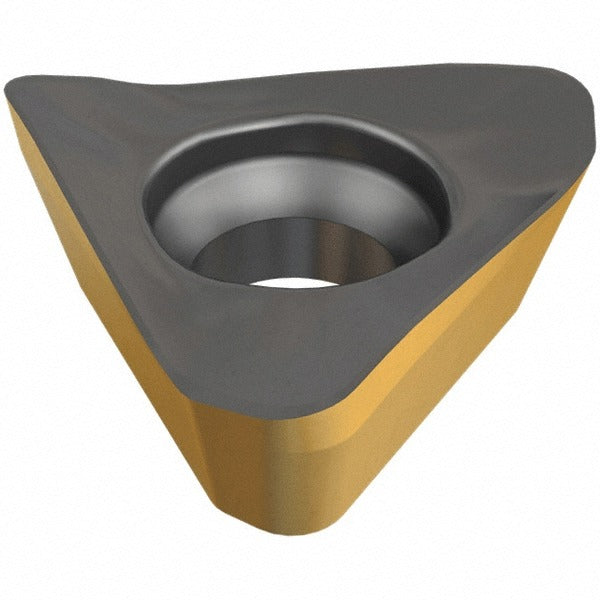

The ISCAR 5667769 is a solid carbide milling insert designed for use in helical shoulder milling operations. Carrying the ANSI designation HM390 TPKT 100316PDR IC830, this triangular insert features a positive rake geometry and a helical cutting edge style that promotes smooth chip evacuation and reduced cutting forces. The IC830 grade is applied with an AlTiN and TiN PVD coating using ISCAR Sumotec PVD technology, providing wear resistance and thermal stability during high-productivity milling. With a corner radius of 1.60 mm (0.0630 inch) and a PDR chip breaker, the insert is suited to finishing and semi-finishing passes in demanding materials. Installation is performed by qualified machinists or tooling technicians using a screw-clamp holding method.

This insert is intended for use in the HM390-10 cutter series, specifically compatible with HM390 TPKT toolholders. Primary workpiece material applications include steel (P), stainless steel (M), superalloys, and titanium (S). The right-hand cutting geometry and positive rake angle make this insert well suited to both roughing and finishing strategies in CNC milling centers where consistent chip control and extended tool life in difficult-to-machine alloys are priorities.

Key Features

• IC830 grade with AlTiN and TiN PVD Sumotec coating for wear resistance in steel, stainless, and superalloy applications
• Positive rake, helical cutting edge style reduces cutting forces and improves surface finish
• PDR chip breaker geometry controls chip flow during semi-finishing and finishing cuts
• 3 cutting edges per insert on a single-sided triangular body maximizes tool economy
• Maximum depth of cut of 8.00 mm (0.3150 inch) supports productive material removal rates
• Conforms to ANSI and ISO 13399 standards for broad toolholder compatibility within the HM390-10 series

Compatibility

Designed for use with HM390-10 series milling cutters accepting HM390 TPKT style inserts. Compatible cutter series designation is HM390-10 as specified by the manufacturer.

Installation Notes
