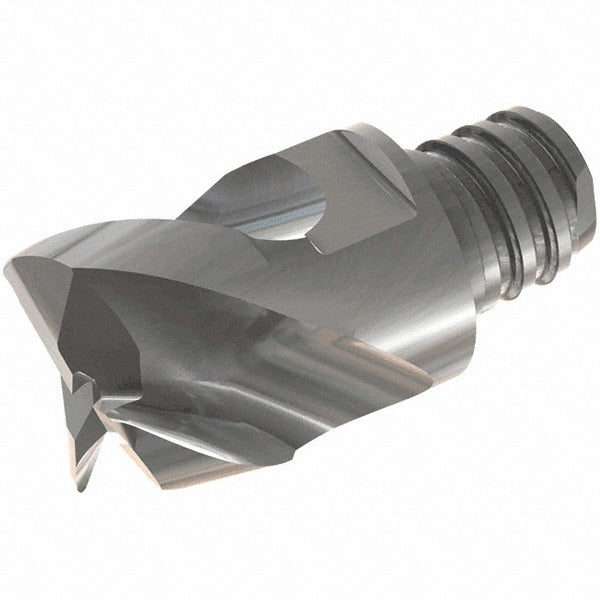

Iscar 5621949 Replaceable Milling Tip 10mm 2-flute Carbide

Product Description

The ISCAR 5621949 is a carbide end replaceable milling tip from the Multimaster MM EA series, designed for modular milling tool systems used in production and maintenance machining environments. It features a 10 mm cutting diameter, a 7 mm maximum depth of cut, and a 2-flute right-hand geometry with a 45-degree helix angle. The sub-micrograin carbide substrate is finished bright and uncoated, pairing with the IC08 manufacturer grade for demanding metal-cutting applications. Machining technicians and tooling specialists install this tip as an interchangeable cutting unit on compatible Multimaster holders, making it a fast-change solution for high-mix shops.

This milling tip is suited for slotting and drilling operations on a broad range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The 90-degree lead angle and 0-degree chamfer angle support full-width slotting entries. The MM EA series design allows tip replacement at the machine without removing the full tool assembly, reducing changeover time in both CNC machining centers and manual milling setups. No coolant-through capability is present, so external coolant or dry cutting conditions apply.

Key Features

• 10 mm cutting diameter with 7 mm maximum depth of cut for slot milling and drilling operations
• 2-flute right-hand cutting geometry with 45-degree helix angle for efficient chip evacuation
• Sub-micrograin carbide substrate, IC08 grade, bright and uncoated finish
• 90-degree lead angle supports direct slotting entry into workpiece material
• Compatible with steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials
• Modular Multimaster MM EA interface enables rapid tip exchange without full tool disassembly

Compatibility

Designed for use with ISCAR Multimaster MM EA series modular milling holders that accept the 100B07R1.0 insert size interface. Confirm holder series and interface size before ordering.

Installation Notes

Installation is performed by a qualified machinist or tooling technician following the machine tool builder and ISCAR Multimaster interface torque and engagement procedures. Disengage and lock out the spindle before tip removal or installation. Inspect the holder interface for wear, debris, or damage before seating the replacement tip. Follow ANSI machining safety standards and the facility's tool change procedures during setup.
