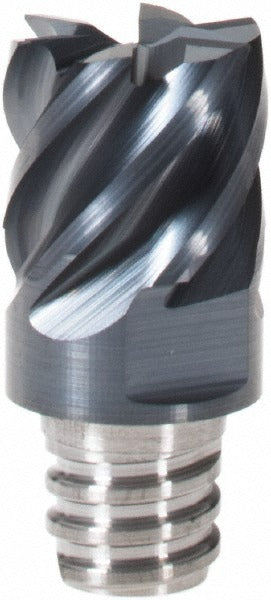

Iscar 5621623 End Replaceable Milling Tip 6 Flute Carbide

Product Description

The ISCAR 5621623 is a carbide end replaceable milling tip designed for the Multimaster MM EC-6 system. It features six flutes, a 45-degree helix angle, and a 90-degree lead angle, making it suited for high-productivity milling operations. Manufactured from sub-micrograin carbide with an IC908 grade and a PVD-applied TiAlN coating, it delivers wear resistance across a wide range of workpiece materials. The 0.375 inch cutting width and 0.275 inch maximum depth of cut are well matched to finishing and semi-finishing passes. Licensed ISCAR tooling specialists and CNC machinists are the typical installers of this tip type.

This milling tip is intended for use in the ISCAR Multimaster MM EC-6 interchangeable-head milling platform. It is configured for right-hand cutting and accepts no chipbreaker. Compatible workpiece materials include steel, stainless steel, cast iron, non-ferrous metal, superalloys and titanium, and hard materials, covering ISO material codes P, M, K, N, S, and H. It does not support through-coolant delivery. The tip conforms to ANSI standards and is sold individually with a minimum order quantity of 2 units.

Key Features

• Sub-micrograin carbide substrate with IC908 grade for toughness and edge retention
• PVD-applied TiAlN coating for elevated heat and oxidation resistance
• Six-flute geometry with 45-degree helix angle for smooth chip evacuation
• 0.375 inch cutting width and 0.275 inch maximum depth of cut
• Right-hand cut configuration with 90-degree lead angle
• Engineered for steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials

Compatibility

Designed for use with the ISCAR Multimaster MM EC-6 interchangeable milling head system. Insert size reference: .375B27R000. Confirm holder compatibility with the MM EC-6 series before installation.

Installation Notes

Installation is performed by qualified CNC machinists or tooling specialists. Ensure the machine spindle is fully stopped and de-energized before removing or seating the milling tip. Seat the tip fully into the Multimaster holder using the appropriate ISCAR torque key to the tool manufacturer's specified engagement. Inspect the mating surfaces for chips or contamination before assembly to avoid seating errors that can affect runout and tip integrity.
