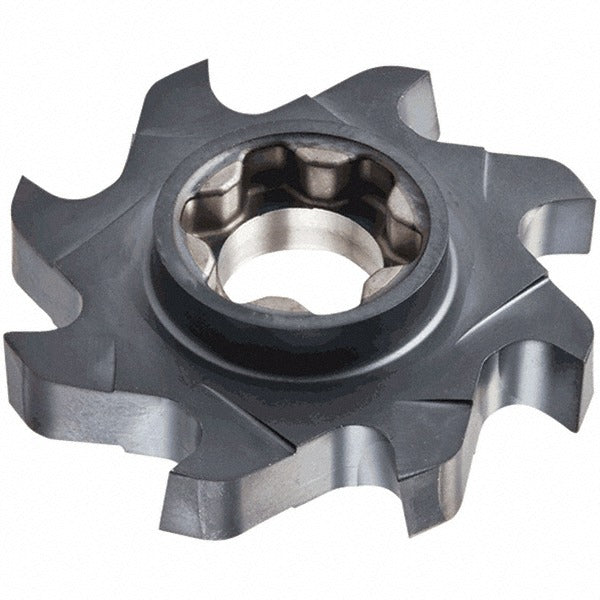

Iscar 5606802 T-slot Replaceable Milling Tip IC908 Carbide

Product Description

The ISCAR 5606802 is a T-slot replaceable milling tip designed for use in modular milling tool systems where indexable inserts are required for accurate, repeatable slot cutting. This tip carries the SD-SP style designation and is manufactured from sub-micrograin carbide with an IC908 grade and a TiAlN coating applied via PVD process. It features 8 flutes and a 1.249-inch cutting diameter, with a maximum depth of cut of 0.315 inches (8 mm) and a corner radius of 0.016 inches. The 90-degree lead angle and right-hand cut orientation make it a direct-fit component for compatible ISCAR T-slot milling bodies. Licensed machinists and CNC tool setup technicians are the primary installers of this tip.

This milling tip is suited for T-slot machining operations across a broad range of workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. It is appropriate for both production and job-shop environments running vertical or horizontal machining centers. The SP15 insert size designation and D32-5.0-R0.4 geometry make it applicable to operations requiring a controlled cutting width of 0.197 inches and a functional length of 0.315 inches. It conforms to ANSI standards and carries the full tip designation SD D32-5.0-R0.4-SP15.

Key Features

• IC908 sub-micrograin carbide grade with PVD-applied TiAlN coating for extended wear resistance
• 8-flute configuration supports higher feed rates in T-slot milling applications
• 1.249-inch cutting diameter with 0.315-inch maximum depth of cut
• 90-degree lead angle and right-hand cut for standard T-slot body compatibility
• Compatible with steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials
• No chipbreaker geometry; no coolant-through capability

Compatibility

Designed as an OEM-style replaceable tip for ISCAR SD-SP series T-slot milling bodies accepting the D32-5.0-R0.4-SP15 insert size. Verify holder compatibility against the SD-SP series specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine spindle before seating or removing replaceable milling tips. Use the manufacturer-specified torque driver or clamping screw to secure the tip; do not overtighten by hand. Inspect the seating pocket and clamping surfaces for chips or debris before each tip change to ensure proper runout and tool life.
