Iscar 5606369 Milling Insert T490 Lnmt 1306PNTR IC330

Product Description

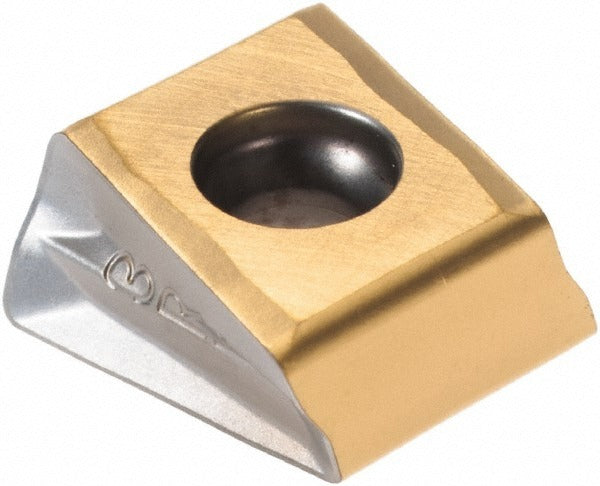

The ISCAR 5606369 is a solid carbide milling insert carrying the ANSI designation T490 LNMT 1306PNTR IC330, designed for use in HELITANG series face and shoulder milling cutters. It features a butterfly (LNMT) insert shape with a negative rake angle, a 90-degree included angle, and a helical cutting edge style that promotes smooth chip flow and reduced cutting forces. The IC330 grade is a PVD-applied TiCN plus TiN coating on a solid carbide substrate, optimized for demanding cutting applications. With four usable cutting edges on a double-sided body, this insert delivers extended tool life per unit. Thickness is 0.514 inches and inscribed circle diameter is 0.262 inches.

This insert is suited for milling steel, stainless steel, superalloys, and titanium in both roughing and finishing operations where helical cutting geometry provides a performance advantage. It is held in the cutter pocket by a screw-clamp method, consistent with HELITANG tooling system practice. The PNTR chip breaker geometry is selected for these workpiece material groups, making the insert applicable across a range of industrial machining environments including aerospace, energy, and general precision metalworking. It is a right-hand cut insert and conforms to both ANSI and ISO 13399 standards.

Key Features

• IC330 grade: PVD-coated TiCN plus TiN on solid carbide substrate for steel, stainless steel, superalloys, and titanium
• 4 cutting edges on a double-sided insert body for reduced tooling cost per edge
• Helical cutting edge style reduces cutting forces and improves surface finish
• PNTR chip breaker geometry suited for the P, M, and S workpiece material classes
• Negative rake, 90-degree included angle for stable, rigid cutting action
• Screw-held mounting method compatible with T490 LNK13 cutter bodies
• Conforms to ANSI and ISO 13399 standards

Compatibility

Designed for use with T490 LNK13 series cutter bodies. Compatible cutter series designation is T490 LNK13 as specified by the manufacturer. Confirm pocket geometry and screw size with the specific cutter body documentation before installation.
