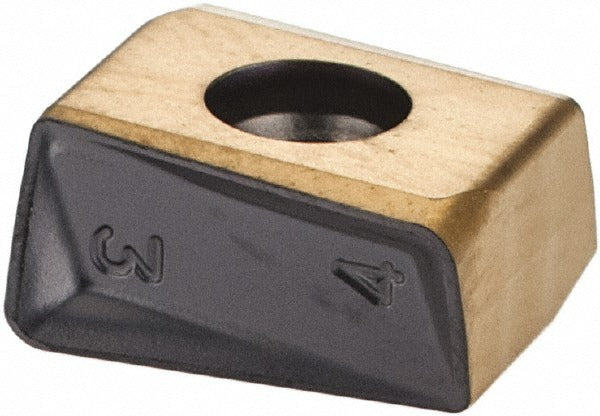

Iscar 5606321 Milling Insert T490 Lnht 080408PNR IC808

Product Description

The ISCAR 5606321 is a solid carbide milling insert with ANSI designation T490 LNHT 080408PNR IC808, designed for use in HELITANG series face and shoulder milling cutters. This double-sided, butterfly-shaped insert carries a negative rake geometry and a helical cutting edge style, which distributes cutting forces and reduces chatter during aggressive material removal. The IC808 grade features a multilayer PVD Sumotec coating combining TiAlN, AlTiN, and TiN layers over a submicron carbide substrate, giving it broad wear resistance across a wide range of workpiece materials. A corner radius of 0.0315 inches (1/32 inch) supports edge stability under interrupted cuts. It is installed by licensed machinists and CNC operators in production and job-shop environments.

This insert is suited for milling operations on steel, stainless steel, cast iron, superalloys, titanium, and hard materials, covering ISO material groups P, M, K, S, and H. Typical applications include face milling, shoulder milling, and ramping operations where consistent chip control and edge life are priorities. The PNR chip breaker geometry is optimized for these material groups at moderate-to-aggressive cutting parameters. The insert seats in right-hand orientation and is held by screw clamping in compatible toolholders.

Key Features

• Double-sided insert with 4 cutting edges, lowering cost per edge
• Helical cutting edge style reduces cutting forces and vibration
• Multilayer PVD Sumotec coating (TiAlN, AlTiN, TiN) for broad material-range wear resistance
• Submicron carbide substrate (IC808 grade) for toughness in interrupted and demanding cuts
• Maximum depth of cut of 0.3150 inches (8.00 mm)
• Negative rake, 90-degree included angle geometry compatible with T490 LNK08 cutter series

Compatibility

Designed for use with the T490 LNK08 cutter series. ANSI code T490 LNHT 080408PNR IC808; ISO code T490 LNHT 080408PNR. Conforms to ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the toolholder pocket and clamping screw seat are clean and free of chips before seating the insert. Use the manufacturer-specified torque driver for the clamping screw to avoid insert rocking or screw damage. Verify insert orientation is right-hand before initial cuts.
