Iscar 5606099 Milling Insert H490 Ankx 170608PNTR IC808

Product Description

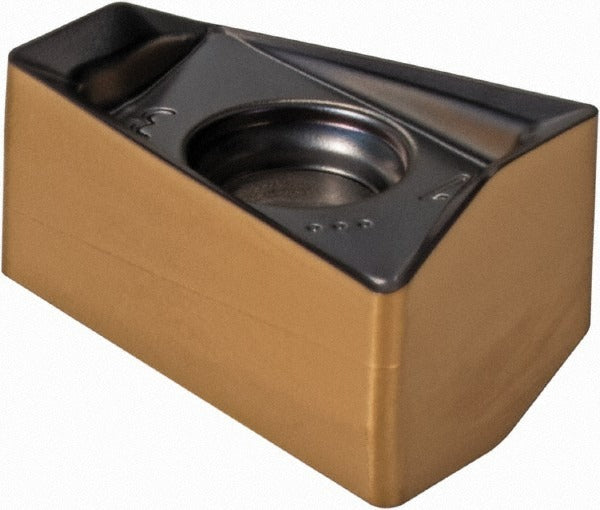

The ISCAR 5606099 is a solid carbide milling insert carrying the ANSI designation H490 ANKX 170608PNTR IC808, designed for use in the HELIDO series H490 ANK17 cutter platform. The insert is parallelogram-shaped with a negative rake geometry and a helical cutting edge style, providing four usable cutting edges per insert on a double-sided body. It is coated with a multilayer Sumotec PVD process applying TiAlN, AlTiN, and TiN coatings in submicron carbide grade IC808. The inscribed circle measures 0.441 inches, thickness is 0.409 inches, and the maximum depth of cut reaches 0.63 inches. This insert is installed by machinists and tooling technicians in production milling operations across metalworking environments.

This insert is suited for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials, covering ISO material groups P, M, K, S, and H. It is a right-hand insert secured by screw clamping and fits the H490 ANK17 cutter series. Typical applications include face milling, shoulder milling, and pocket milling operations in both job shop and high-volume production settings. The PNTR chip breaker geometry supports efficient chip formation across these material groups. The insert meets ANSI and ISO 13399 standards, making it compatible with standard tooling management systems.

Key Features

• Solid carbide submicron grade IC808 with multilayer Sumotec PVD coating: TiAlN, AlTiN, and TiN
• Double-sided insert with four cutting edges, maximizing cost-per-edge value
• Helical cutting edge style with PNTR chip breaker for controlled chip evacuation
• Negative rake, zero relief angle geometry suited for high-feed and hard-material milling
• Corner radius of 0.0315 inches (1/32 inch) for defined edge geometry and surface finish
• Meets ANSI and ISO 13399 standards for tooling data interoperability

Compatibility

Designed for use in the ISCAR HELIDO H490 ANK17 cutter series. ANSI code H490 ANKX 170608PNTR IC808. ISO code H490 ANKX 170608PNTR. Insert size code 170608. Fits toolholders accepting inserts in the 0.400 to 0.500 inch inscribed circle range and 0.350 to 0.500 inch thickness range.
