Iscar 5606028 Milling Insert H490 Ancx 090408PDR IC808

Product Description

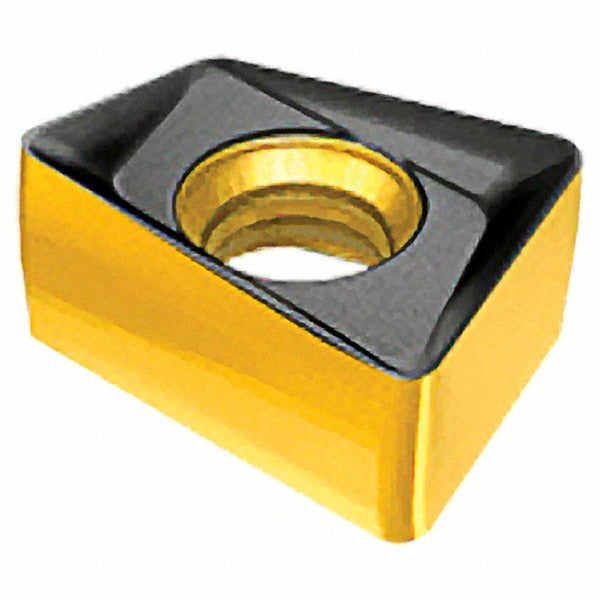

The ISCAR 5606028 is a solid carbide milling insert carrying the manufacturer designation H490 ANCX 090408PDR IC808. It belongs to the HELIDO series and features a parallelogram shape with a negative rake geometry and helical cutting edge style. The insert is double-sided with four cutting edges per insert, extending usable tool life between changeovers. A PVD-applied Sumotec coating combining TiAlN, AlTiN, and TiN layers protects the IC808 submicron carbide grade against heat and wear. The insert is held in the cutter body by a screw-clamp method and is designed for right-hand cutting. Licensed machinists, CNC operators, and toolroom technicians working in high-production milling environments are the primary users.

This insert is suited for face milling, shoulder milling, and helical interpolation operations on a broad range of workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It is compatible with the H490 ANK09 cutter series and is indexed to ANSI and ISO 13399 standards. The PDR chip breaker geometry supports stable chip evacuation across these material groups. Both light finishing and semi-finishing passes are within its design envelope, making it a versatile choice for job shops and production facilities running mixed-material schedules.

Key Features

• Double-sided insert with 4 cutting edges for extended tool economy
• IC808 submicron carbide grade with Sumotec PVD coating: TiAlN, AlTiN, and TiN layers
• Helical cutting edge style with PDR chip breaker for controlled chip flow
• Negative rake, 0-degree relief angle for rigid, stable engagement
• Right-hand cut; screw-clamp insert holding method
• Compliant with ANSI and ISO 13399 standards

Compatibility

Designed for use with the H490 ANK09 cutter series. The ANSI code for this insert is H490 ANCX 090408PDR IC808 and the ISO code is H490 ANCX 090408PDR.

Installation Notes

Insert seating and torque should follow the cutter body manufacturer's service documentation for the H490 ANK09 toolholder. Power down and lock out the spindle before indexing or replacing inserts. Use the correct Torx or hex key specified for the clamping screw to avoid seat damage. Inspect the insert pocket for chips or debris before seating a new insert.
