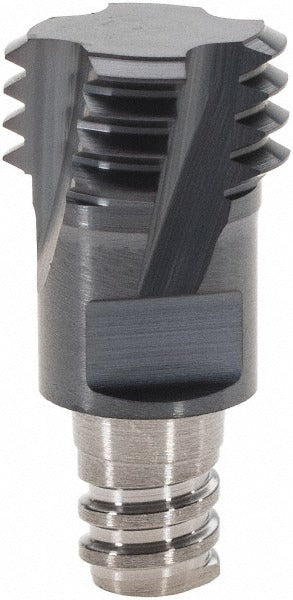

Iscar 5605512 Thread Mill Tip 10mm Carbide Tialn 4 Flute

Product Description

The ISCAR 5605512 is a replaceable carbide milling tip designed for thread milling operations in a wide range of workpiece materials. Part of the Multimaster/SolidThread system, this tip mounts to compatible modular holders and delivers precise UN-profile threads using a right-hand, 4-flute geometry. The cutting diameter measures 10.00 mm (0.394 inches), with a maximum depth of cut of 5.1 mm (0.201 inches) and a functional length of 0.502 inches. The substrate is sub-micrograin carbide with a TiAlN coating applied via PVD process, providing wear resistance across demanding cutting applications. It carries an IC908 manufacturer grade designation and conforms to ANSI standards.

This milling tip is suited for thread milling in steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering workpiece material codes P, M, K, N, S, and H. The 90-degree lead angle and 90-degree included angle geometry supports standard UN thread profiles. Typical installation scenarios include CNC machining centers running modular tooling setups where repeatable thread quality and fast tip changeover are priorities. No coolant-through capability is built into this tip.

Key Features

• Sub-micrograin carbide substrate with PVD-applied TiAlN coating for extended tool life in abrasive and high-temperature cutting
• 4-flute right-hand cutting geometry for UN thread profiles per ANSI standards
• 10.00 mm cutting diameter with 0.201-inch maximum depth of cut
• Modular replaceable tip design compatible with the Multimaster/SolidThread holder system
• Covers six primary workpiece material groups: P, M, K, N, S, and H
• No chipbreaker — clean geometry optimized for thread form accuracy

Compatibility

Designed for use with ISCAR Multimaster and SolidThread modular tooling system holders accepting MT series replaceable tips in the 10D6 insert size class, as identified in series designation MT-UN-MM.

Installation Notes

Installation and removal of replaceable milling tips should be performed by a qualified machinist or tooling technician with the machine powered down and spindle locked. Follow the holder manufacturer torque guidelines for tip seating — do not use impact tools. Verify tip seating and runout with an indicator before cutting. Handle carbide tips carefully to avoid chipping the cutting edges during storage and changeover.
