Iscar 5605178 Milling Insert Apkt 1003PDR HM90 IC328

Product Description

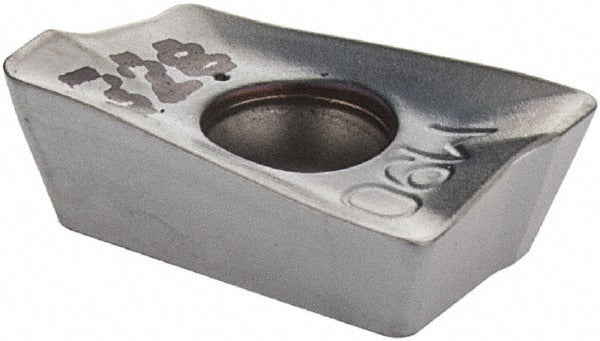

The ISCAR 5605178 is a solid carbide milling insert designed for use in HELIMILL series face and shoulder milling cutters. Running the APKT 1003PDR HM90 insert geometry with an IC328 grade, this insert features a PVD-applied TiCN coating that supports cutting in steel, stainless steel, superalloys, and titanium. The parallelogram insert shape and positive rake geometry reduce cutting forces and promote clean chip formation. With a thickness of 0.139 inches and an inscribed circle of 0.264 inches, it fits the HM90-10 cutter series and is held in place by a screw-clamping method. Two cutting edges per insert are available.

This insert is suited for milling operations on ferrous and difficult-to-machine materials including steel, stainless steel, superalloys, and titanium. It is used in production and job-shop environments on CNC machining centers performing face milling, shoulder milling, and pocket milling applications. The right-hand cutting orientation and honed cutting edge style make it appropriate for finish and semi-finish passes where edge stability and surface finish quality are priorities. Machinists and CNC operators working with the HELIMILL HM90-10 cutter body will find this insert a direct fit replacement.

Key Features

• IC328 grade with PVD TiCN coating for extended tool life in steel and stainless steel applications
• Positive rake geometry reduces cutting forces and supports smooth chip evacuation
• Honed cutting edge style improves edge stability during semi-finish and finish milling
• Two usable cutting edges per insert for cost efficiency
• Right-hand insert orientation with screw-clamping retention
• Compliant with ANSI and ISO 13399 insert standards

Compatibility

Designed for use with ISCAR HELIMILL cutter series HM90-10 cutter bodies. Compatible cutter series designation is HM90-10 as specified by the manufacturer.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the cutter body specification - do not overtighten or substitute fasteners. Inspect the cutter body pocket and seating surfaces for chips or damage before installing a new insert.
