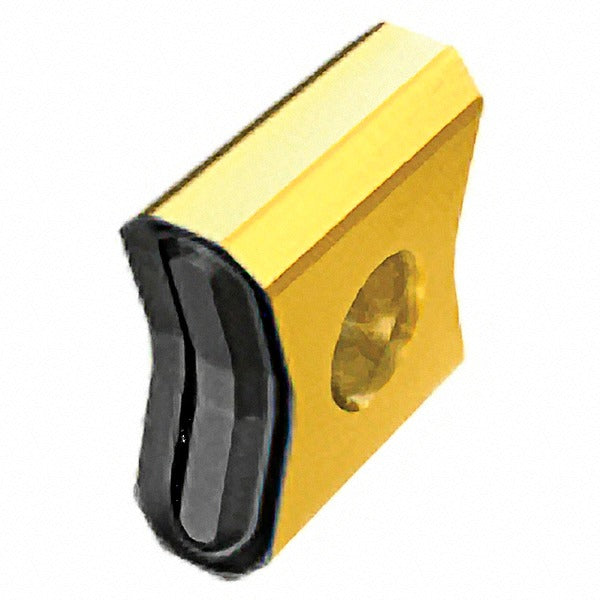

Iscar 5605010 Milling Insert Lnkx 1506 IC910 Carbide

Product Description

The ISCAR 5605010 is a solid carbide milling insert carrying the ANSI designation LNKX 1506 1.5X45PN-N in the IC910 grade. It belongs to the TANGMILL series and features a butterfly (LNKX) insert style with a double-sided, neutral-hand configuration that delivers four usable cutting edges per insert. The PVD-applied AlTiN coating and IC910 substrate are engineered for productivity in steel and cast iron applications. The insert has a negative rake geometry with a 27-degree rake angle, a T-Land cutting edge style, and a relief angle of 0 degrees. Maximum depth of cut is 0.276 inches (7.00 mm), and the effective cutting edge length is 0.5906 inches.

This insert is intended for milling operations on steel and cast iron workpieces in both production-floor and job-shop environments. The TANGMILL series is a tangentially mounted milling platform, meaning inserts are clamped radially for high compressive strength and resistance to insert breakage during aggressive interrupted cuts. Compatible cutter series are SSB-LN15 and F90LN15. Inserts are screw-held and suited to face milling and shoulder milling toolpaths where a 90-degree included angle is required. Both ANSI and ISO 13399 standards are met.

Key Features

• Double-sided insert with 4 cutting edges per insert for lower cost-per-edge
• IC910 grade with PVD AlTiN coating optimized for steel (ISO P) and cast iron (ISO K)
• Butterfly (LNKX) insert style with tangential mounting for high compressive strength
• Negative rake with 27-degree rake angle and T-Land edge preparation for edge stability
• Maximum depth of cut 0.276 inches (7.00 mm); effective cutting edge length 0.5906 inches
• Corner radius 0.0315 inches (0.80 mm) for controlled surface finish at the workpiece corner

Compatibility

Designed for use with ISCAR TANGMILL cutter series SSB-LN15 and F90LN15. Insert size code 1506 with an inscribed circle of 0.2360 inches. Meets ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by a machinist or toolroom technician using the appropriate torx or hex key for the clamping screw specified by the cutter body manufacturer. Ensure the cutter body pocket seats and locating surfaces are clean and free of chips before seating the insert. Power down and lock out the machine spindle before any insert change. Do not exceed the maximum depth of cut or feed rates specified in the cutter body documentation for the SSB-LN15 or F90LN15 platform.
