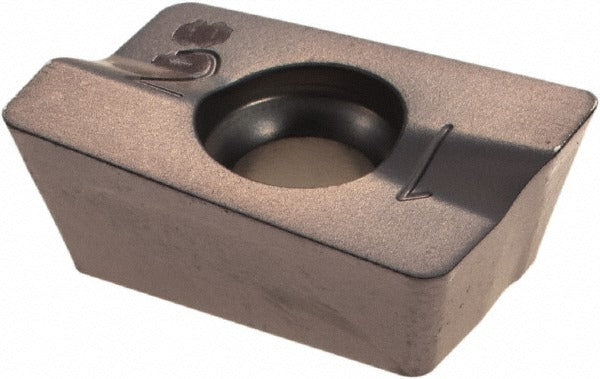

Iscar 5604653 Milling Insert HM90 Adkw 1505PDR IC908

Product Description

The ISCAR 5604653 is a solid carbide milling insert carrying the ANSI designation HM90 ADKW 1505PDR IC908. It is a parallelogram-shaped, single-sided insert engineered for use in helical milling operations within the HELI2000 series and HM90-15 cutter platform. The insert is coated with TiAlN via a PVD process, which supports cutting performance across a wide range of workpiece materials. It features a positive rake geometry, a honed cutting edge, and a PDR chip breaker. With 2 cutting edges and a relief angle of 15 degrees, it is designed for productive metal removal in demanding machining environments. Installation is secured by a screw-holding method.

This insert is suited for milling applications in manufacturing and machining shops, including production environments handling steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its IC908 submicron carbide grade and TiAlN PVD coating make it appropriate for both roughing and finishing passes where tool life and edge stability matter. The right-hand cut orientation and 85-degree included angle are standard for HM90-15 cutter bodies. Machinists and CNC operators working in job shops, aerospace, or heavy industry will find this insert fits common multi-pass milling programs.

Key Features

• TiAlN PVD coating on IC908 submicron solid carbide substrate for extended tool life in ferrous and hard materials
• PDR chip breaker geometry supports positive rake cutting with controlled chip formation
• Maximum depth of cut: 0.472 inches (14.15 mm)
• Cutting edge effective length: 0.557 inches with a honed edge style for consistent edge integrity
• 2 cutting edges per insert, single-sided, right-hand orientation
• Screw-holding method compatible with HM90-15 series cutter bodies
• Meets ANSI and ISO 13399 standards

Compatibility

Designed for use with HM90-15 series cutter bodies. ANSI code HM90 ADKW 1505PDR IC908 and ISO code HM90 ADKW 1505PDR confirm fitment within the HELI2000 platform. Verify cutter body designation before ordering.

Installation Notes

This insert is installed and replaced by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully against the pocket locating surfaces before tightening the clamping screw to avoid micro-movement under cutting loads. Inspect the insert pocket for wear or debris each time an insert is changed.
