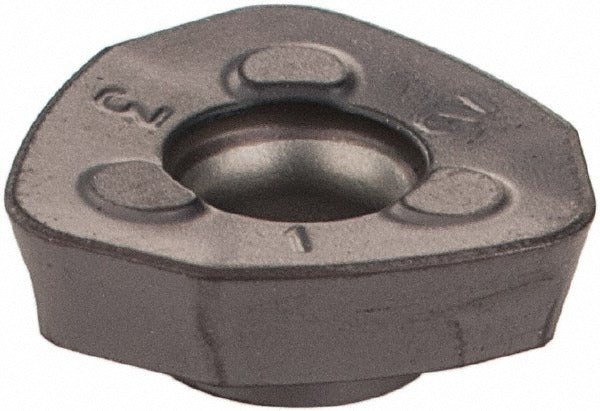

Iscar 5604584 Milling Insert IC908 Tialn High Feed

Product Description

The ISCAR 5604584 is a solid carbide milling insert designed for high-feed-rate face milling operations. Designated by ANSI code FF WOMT 060212T-M IC908, it features a trigon (WOMT) insert style with an 80-degree included angle and a neutral hand orientation. The IC908 grade uses a submicron carbide substrate with a PVD-applied TiAlN coating, delivering wear resistance and thermal stability under aggressive cutting conditions. The insert has a positive rake geometry and an M-style chip breaker to promote efficient chip evacuation. It holds three cutting edges per insert, maximizing value per unit. Thickness is 0.1060 inches with an inscribed circle of 0.3882 inches. Licensed machinists, tool-and-die operators, and CNC machine shops are the typical users of this insert.

This insert is engineered for high-feed-rate milling applications across a broad range of workpiece materials including steel, stainless steel, cast iron, superalloys and titanium, and hard materials (ISO material codes P, M, K, S, and H). It is sized for use in compatible FEEDMILL series cutter bodies, specifically the FF FW and FF EW cutter series. Maximum depth of cut is 0.0470 inches (1.50 mm), making it well-suited to high-feed, light-axial-depth strategies that maximize material removal rates while reducing spindle load. Insert size code is 060212 with a cutting edge effective length of 0.2756 inches.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for extended tool life in steel and hard materials
• Trigon (WOMT) insert shape with 80-degree included angle and neutral hand for versatile mounting
• Three usable cutting edges per insert for cost efficiency
• Positive rake and M chip breaker geometry support high-feed, low-axial-depth cutting strategies
• Inscribed circle of 0.3882 inches (12.00 mm) and thickness of 0.1060 inches for size code 060212
• Conforms to ANSI and ISO 13399 standards; screw-held, single-sided insert

Compatibility

Compatible with ISCAR FEEDMILL series cutter bodies in the FF FW and FF EW cutter series. Insert is secured by screw-holding method. Verify cutter body pocket geometry and insert seat dimensions against ISCAR tooling catalog before installation.

Installation Notes

Installation of milling inserts should be performed by a qualified machinist or CNC tooling technician with the spindle fully stopped and the machine locked out per OSHA lockout/tagout procedures. Use the correct torque screwdriver or hex key as specified by the cutter body manufacturer to seat the insert without cracking the carbide substrate. Inspect the insert pocket and seating surfaces for chips or debris before mounting. Discard inserts showing edge chipping, cratering, or coating breakdown rather than reindexing a worn edge.
