Iscar 5604318 Milling Insert IC28 Solid Carbide Uncoated

Product Description

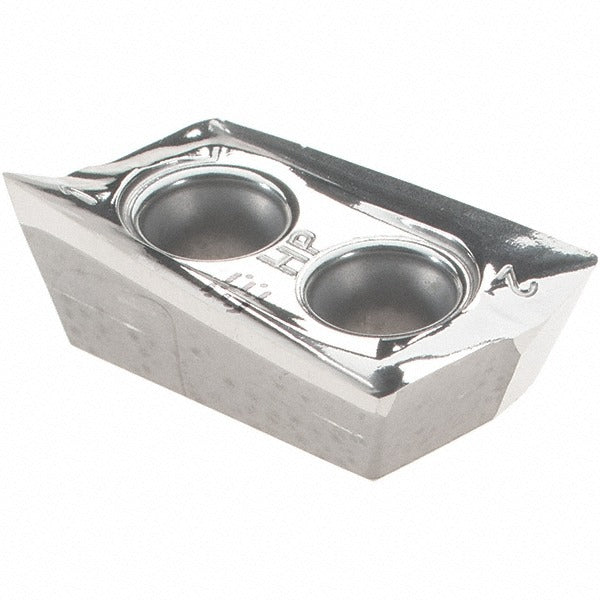

The ISCAR 5604318 is a solid carbide milling insert in the HELIPLUS series, designed for high-performance milling of non-ferrous metals. Carrying ANSI and ISO 13399 designations as HP ADCR 190604PDFR-P IC28, this insert features a parallelogram shape with an 85-degree included angle, a positive rake angle of 27 degrees, and a sharp cutting edge style. The IC28 grade is an uncoated bright finish carbide optimized for non-ferrous material applications. With a corner radius of 0.0157 inches (1/64 inch) and a maximum depth of cut of 0.768 inches, it delivers precise, clean cuts in aluminum and similar materials. Licensed HVAC and industrial tooling technicians handling precision milling operations will find this insert sized for compatible HELIPLUS cutter bodies.

This insert is intended for milling non-ferrous metals such as aluminum and copper alloys in both production and maintenance machining environments. It fits screw-held tooling systems and is compatible with HELIPLUS HP .90-19 cutter series bodies. The right-hand orientation and P chip breaker geometry make it suited for finish and semi-finish milling passes where chip control and surface quality are priorities. It is a single-sided insert offering two cutting edges per piece, sold individually with a minimum order quantity of 10 units.

Key Features

• IC28 uncoated solid carbide grade optimized for non-ferrous metal cutting
• Positive rake angle of 27 degrees with sharp cutting edge for reduced cutting forces
• Corner radius of 0.0157 inches (1/64 inch) for controlled edge geometry
• Maximum depth of cut of 0.768 inches with cutting edge effective length of 0.768 inches
• P chip breaker design promotes effective chip evacuation on non-ferrous materials
• Two cutting edges per insert, screw-held mounting, right-hand orientation

Compatibility

Designed for use with HELIPLUS HP .90-19 series cutter bodies. Insert size code 190604 with ANSI designation HP ADCR 190604PDFR-P IC28 and ISO code HP ADCR 190604PDFR-P. Conforms to ANSI and ISO 13399 standards.

Installation Notes

Installation is performed by qualified machinists or tooling technicians using the appropriate Torx or hex key for the clamping screw specified by the cutter body manufacturer. Power down and lock out the spindle before seating or indexing inserts. Inspect the insert pocket and clamping screw for wear or damage before each installation. Do not exceed the maximum depth of cut or feed rate specified for the cutter body in use.
