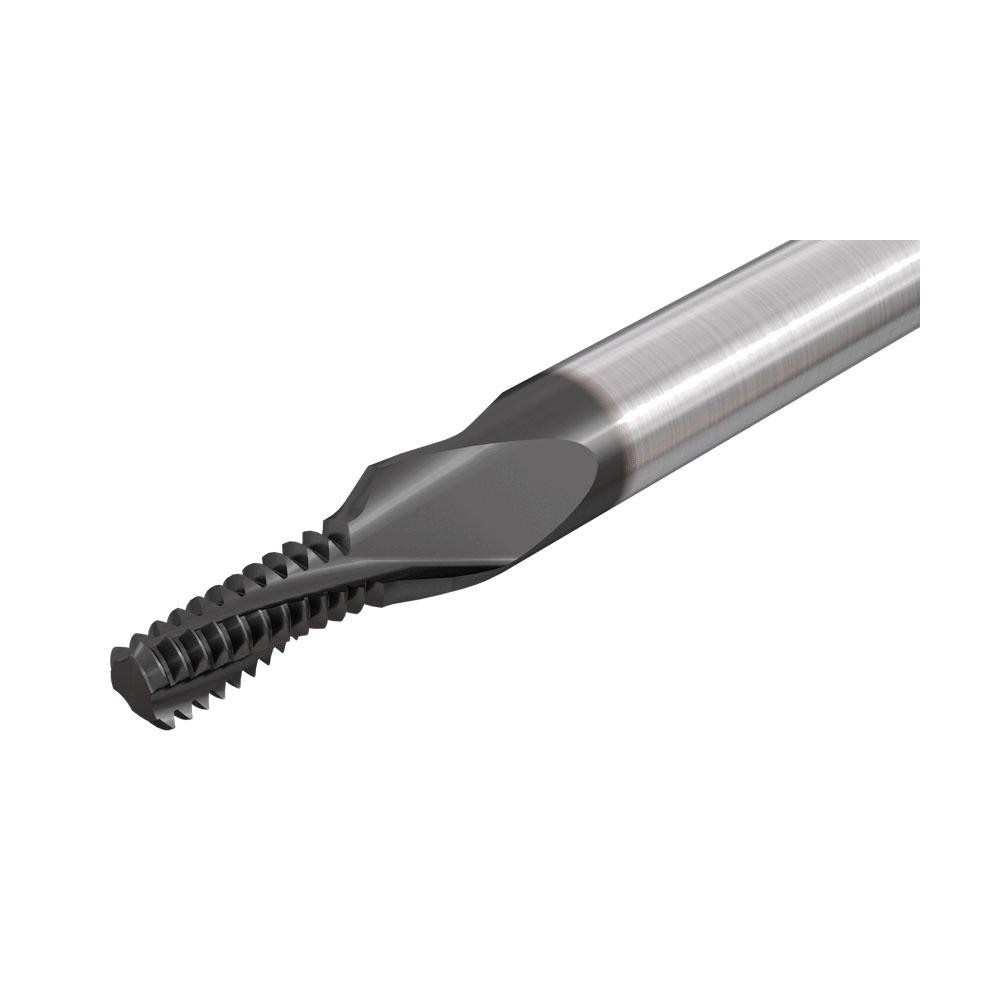

Iscar 5603929 Helical Flute Thread Mill 7/8 Ext 3 Flute

Product Description

The ISCAR 5603929 is a solid carbide helical flute thread mill designed for external threading operations on metalworking CNC machining centers. It produces UN-standard external threads at 9 teeth per inch (TPI) with a cutting diameter of 0.59 inches and a length of cut of 1.5 inches. The 5/8-inch shank provides rigid tool holding in standard end mill chucks and collet holders. A TiAlN coating delivers elevated heat resistance and extended tool life in ferrous and hard-material applications. Three right-hand helical flutes provide smooth cutting action and efficient chip evacuation. This tool is intended for use by machinists and tooling specialists on production or job-shop CNC milling equipment.

This thread mill is suited for machining external UN threads on workpieces where single-point threading or tapping is impractical. It is appropriate for use on CNC machining centers capable of helical interpolation. The minimum nominal diameter it can thread is 0.84 inches, making it well-matched for 7/8-inch external thread profiles in steel, stainless steel, cast iron, and similar materials. Applications include production threading of fastener bosses, flanges, fittings, and mechanical components in aerospace, oil and gas, and general manufacturing environments.

Key Features

• Solid carbide construction for rigidity and dimensional stability in demanding cutting conditions
• TiAlN coating for high-temperature resistance and extended tool life in ferrous materials
• 3 right-hand helical flutes for smooth chip evacuation during thread milling cycles
• UN thread standard with 9 TPI for compatibility with common inch-series external thread profiles
• 5/8-inch shank diameter fits standard collet chucks and end mill holders
• No coolant-through design — suitable for flood or mist external coolant delivery

Compatibility

Designed for use on CNC machining centers with helical interpolation capability for producing 7/8-inch UN external threads at 9 TPI with a minimum nominal diameter of 0.84 inches.

Installation Notes

Installation and tool changes must be performed with the machine in a safe, locked-out state per applicable shop safety procedures. Secure the 5/8-inch shank in a balanced, properly torqued collet or end mill holder before use. Verify CNC program parameters for helical interpolation pitch and direction before cutting. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and coating type.
