Iscar 5603909 Thread Mill 1/2 External 4 Flute Solid Carbide

Product Description

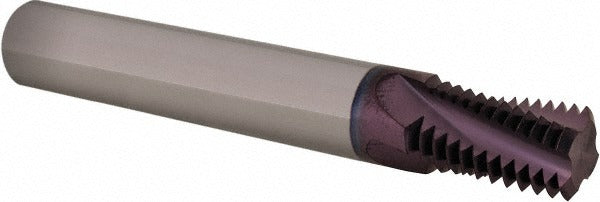

The ISCAR 5603909 is a solid carbide helical flute thread mill designed for cutting external NPT threads. It runs 4 right-hand flutes at 14 teeth per inch (TPI) with a 0.5 inch cutting diameter and a 0.8 inch length of cut. The tool is finished with a TiAlN coating for heat and wear resistance during high-speed milling operations. At 3.5 inches overall length and a 0.5 inch shank diameter, it is sized for standard toolholder setups found in CNC machining centers. Installed by machinists and tool-and-die professionals, this mill handles external thread forms in ferrous and non-ferrous workpiece materials.

This thread mill is suited for CNC machining centers producing external NPT threads in production and maintenance-repair environments. With a minimum nominal diameter of 0.71 inches, it is compatible with through-hole and blind-hole applications where helical interpolation is used. The 4-flute geometry supports efficient chip evacuation across a range of cutting parameters. It does not require coolant-through capability, making it compatible with standard external coolant setups.

Key Features

• Solid carbide construction for rigidity and dimensional stability
• TiAlN coating improves heat resistance and extends tool life in ferrous materials
• 14 TPI external NPT thread form
• 4 right-hand helical flutes for balanced cutting action and chip removal
• 0.5 inch cutting diameter with 0.8 inch length of cut for common fastener thread depths
• No coolant-through required, compatible with external coolant delivery

Compatibility

Designed for CNC machining centers using helical interpolation to produce external NPT thread forms; requires a minimum nominal workpiece diameter of 0.71 inches.

Installation Notes
