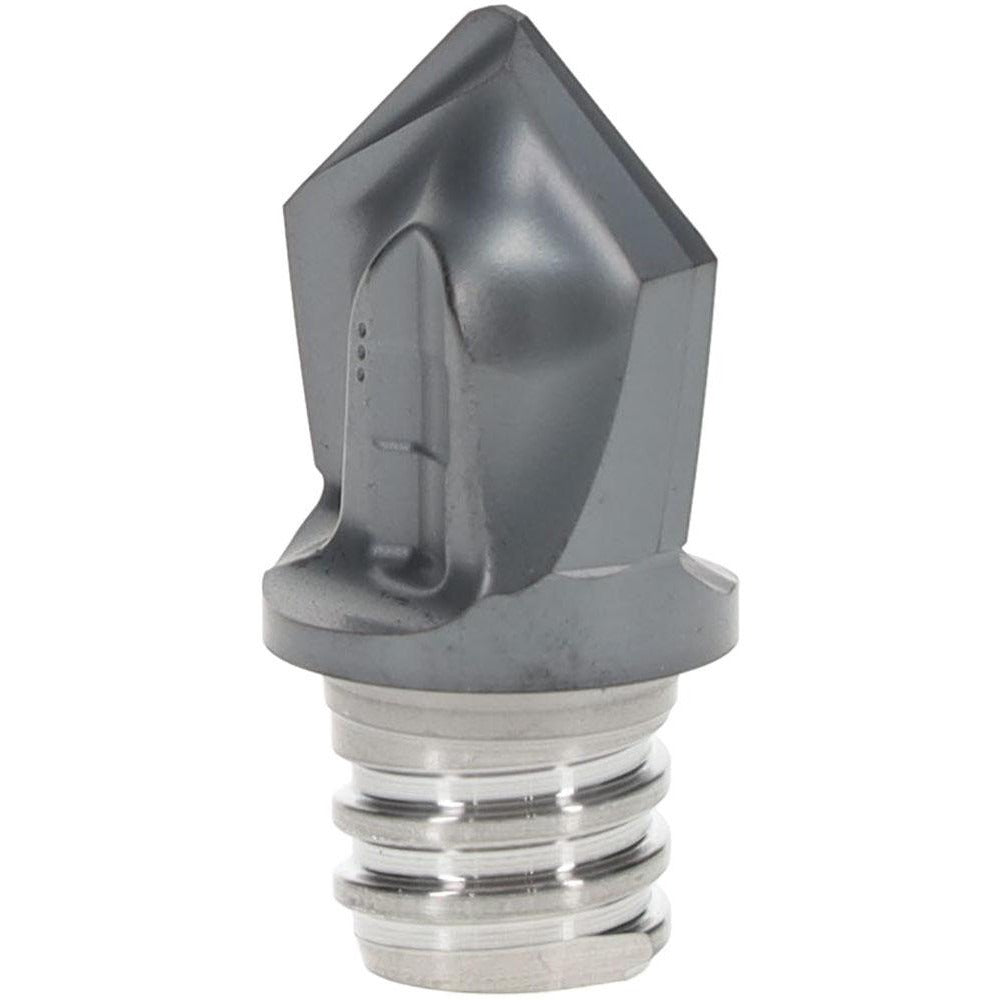

Iscar 5603806 Chamfer Milling Tip IC908 Carbide 2 Flute

Product Description

The ISCAR 5603806 is a chamfer replaceable milling tip in the Multimaster MM HCD series, designed for modular end mill tooling systems. Built from sub-micrograin carbide with a TiAlN coating applied via PVD process, this tip carries the IC908 manufacturer grade and delivers consistent performance across a wide range of workpiece materials. It runs two right-hand flutes, with a 0.059-inch cutting diameter and a maximum depth of cut of 0.209 inches. The chamfer geometry is configured at a 45-degree chamfer angle with a 90-degree lead angle and a 140-degree included angle. Licensed machinists and CNC tooling technicians use this tip for chamfering operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials.

This milling tip is suited for use in production machining environments where Multimaster-compatible tooling systems are already in place. The MM HCD120-090-2T08 designation identifies the tip geometry and mount interface. Typical applications include chamfering edges, deburring, and angled feature generation on turned or milled workpieces. The IC908 carbide grade with TiAlN PVD coating is well matched to interrupted cuts and demanding material families including superalloys and hardened steels. Coolant-through is not supported on this tip. This tip is sold individually, with a minimum order quantity of 2.

Key Features

• Sub-micrograin carbide construction with IC908 grade for wear resistance and edge integrity
• TiAlN PVD coating suited for dry or semi-dry cutting in steel, stainless, cast iron, and hard materials
• 45-degree chamfer angle with 90-degree lead angle and 140-degree included angle
• Two right-hand flutes for efficient chip evacuation during chamfering operations
• Replaceable Multimaster interface tip eliminates the need to change the full tool body
• ANSI standard compliance

Compatibility

Designed for use with ISCAR Multimaster modular milling tool holders accepting the MM HCD series tip interface, insert size 120-090.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians using the appropriate Multimaster tool holder and assembly torque tool. Always ensure the machine spindle is powered down and locked out before changing milling tips. Inspect the holder pocket and seating surface for chips or damage before installing the replacement tip. Follow the tool holder manufacturer torque guidance for the specific Multimaster holder in use.
