Iscar 5602498 Milling Insert HM90 Adkt 1505PDR IC910

Product Description

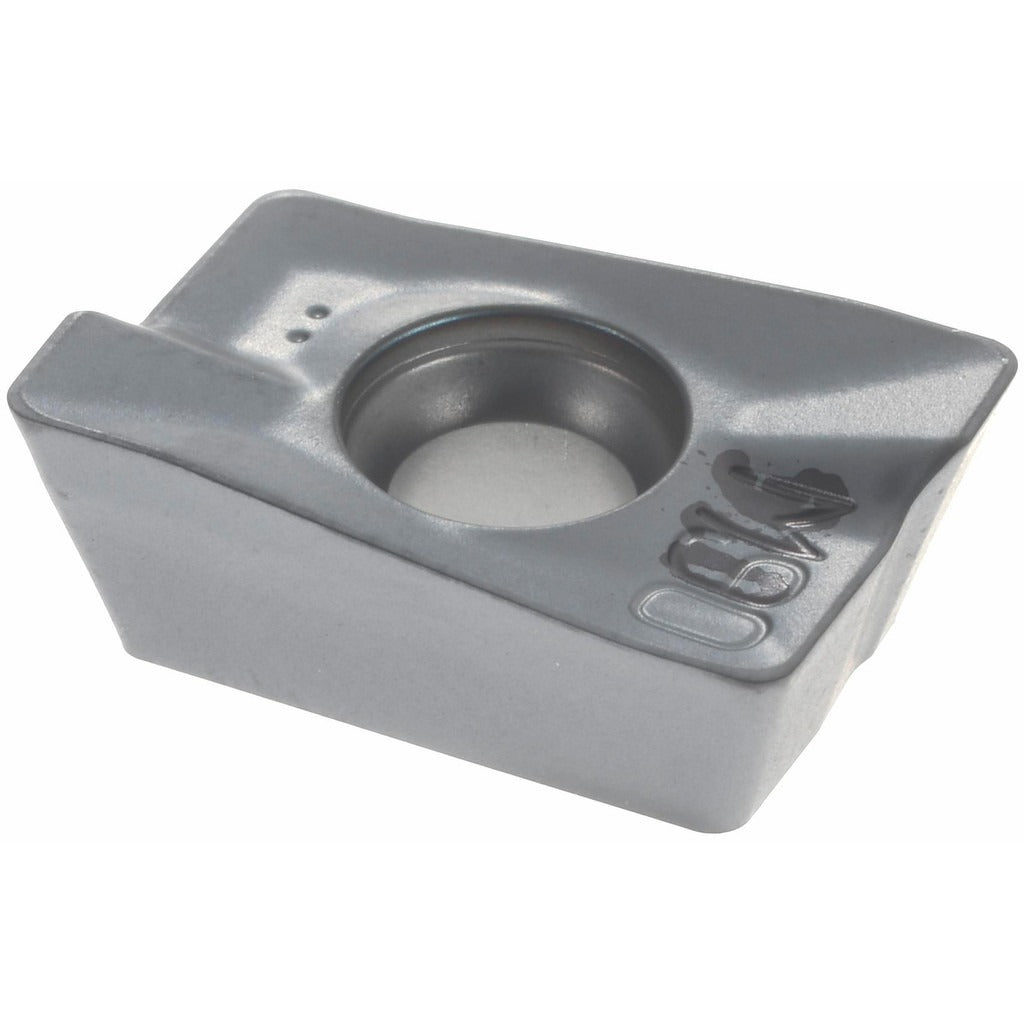

The ISCAR 5602498 is a solid carbide milling insert designed for use in HM90-15 series milling cutters. It carries the ANSI designation HM90 ADKT 1505PDR IC910 and is part of the HELI2000 series. The insert features an AlTiN coating applied via PVD process, a parallelogram shape with an 85-degree included angle, and a positive rake geometry. The PDR chip breaker is optimized for controlled chip formation during high-feed milling operations. With a maximum depth of cut of 0.472 inches (12.00 mm) and two cutting edges, this insert delivers consistent performance on steel and cast iron workpieces. It is held in the cutter body by a screw-clamp method.

This insert is suited for milling applications in ferrous materials, specifically steel and cast iron, corresponding to ISO material groups P and K. It fits the HM90-15 cutter series and is appropriate for both roughing and semi-finishing passes in production machining environments. The right-hand cutting geometry and positive rake make it a practical choice for reducing cutting forces on standard vertical machining centers and milling machines. Installation is performed by qualified machinists or tooling technicians following standard indexable insert tooling procedures.

Key Features

• AlTiN coating via PVD process for heat and wear resistance on ferrous materials
• PDR chip breaker geometry for controlled chip evacuation during steel and cast iron milling
• Positive rake angle reduces cutting forces and heat generation at the cutting edge
• Two usable cutting edges per insert for extended tooling value
• Screw-clamp insert holding method for secure, repeatable seating in the cutter body
• Honed cutting edge style for improved edge stability and reduced chipping risk

Compatibility

Designed for use with HM90-15 series milling cutter bodies. Cutter series compatibility is listed as HM90-15. Conforms to ANSI and ISO 13399 standards.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or tooling technician with the machine fully powered down and locked out per standard LOTO procedures. Use the appropriate torx or hex key to seat and torque the clamping screw; refer to the cutter body manufacturer specifications for the correct torque value. Inspect the insert pocket for debris or damage before seating a new insert. Do not exceed the maximum depth of cut rating for the insert or cutter body.
