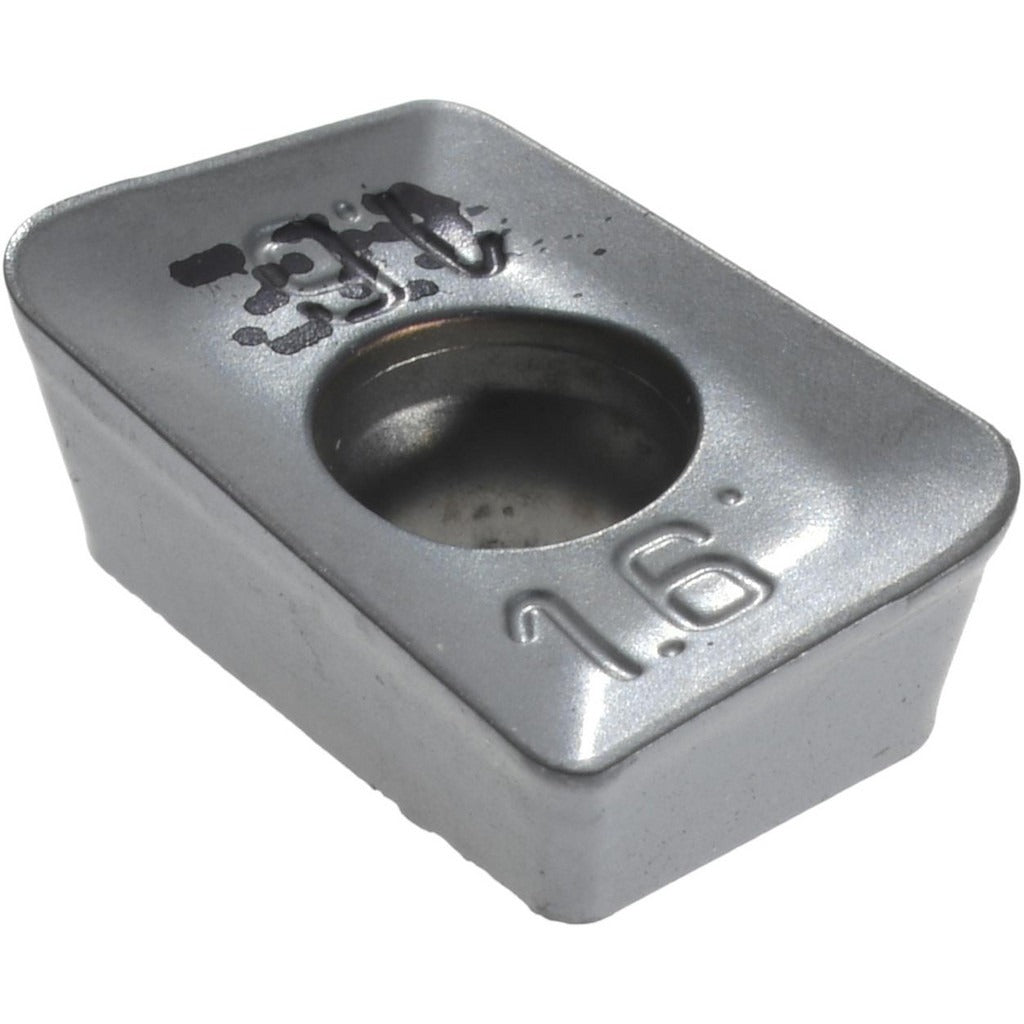

Iscar 5601612 Milling Insert Apkt 100316PDTR-RM IC328

Product Description

The ISCAR 5601612 is a solid carbide milling insert carrying the ANSI/ISO designation APKT 100316PDTR-RM in grade IC328. It is a single-sided, right-hand, parallelogram-style insert with an 85-degree included angle and a positive rake geometry. The cutting edges are chamfered and honed for edge stability. A PVD-applied TiCN coating provides wear resistance and heat management during high-speed milling. With a corner radius of 0.063 inches and a maximum depth of cut of 0.362 inches, this insert is suited for productive face and shoulder milling in the HELIMILL platform. Licensed machinists and CNC tooling specialists are the primary installers.

This insert is designed for milling steel, stainless steel, superalloys, and titanium, covering material grade codes P, M, and S. It fits the HM90-10 cutter series within the HELIMILL system. Typical applications include face milling, shoulder milling, and ramping operations on production machining centers where tool life and surface finish consistency are critical. The RM chip breaker geometry is configured to manage chip flow in medium to moderate cutting conditions across the listed workpiece materials.

Key Features

• PVD TiCN coating in IC328 grade for wear resistance on steel, stainless steel, and titanium
• Positive rake geometry with chamfered and honed cutting edges for stable, controlled cuts
• Corner radius of 0.063 inches for reduced notching and improved surface finish
• Maximum depth of cut of 0.362 inches with an effective cutting edge length of 0.385 inches
• RM chip breaker optimized for medium-condition milling of ferrous and exotic materials
• Screw-held single-sided insert compatible with HM90-10 HELIMILL cutter bodies

Compatibility

Designed for use with HM90-10 cutter bodies in the ISCAR HELIMILL series. Conforms to ANSI and ISO 13399 standards. Insert size code 100316 and ANSI code APKT 100316PDTR-RM IC328 should be verified against the cutter body specification before ordering.

Installation Notes

This insert is secured by screw-clamping into the cutter body pocket; ensure the pocket seating surfaces are clean and free of chips before seating the insert. Power down and lock out the spindle before any insert change. Use the correct torque driver specified by the cutter body manufacturer for the clamping screw — do not over-torque. Verify insert orientation for right-hand cutting direction before resuming operation.
