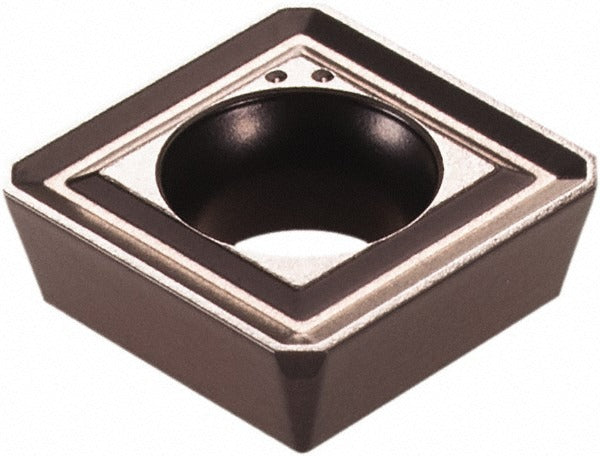

Iscar 5600124 Milling Insert Sdmt 0903AD-N IC520M Ticn

Product Description

The ISCAR 5600124 is a single-sided square milling insert carrying ISCAR grade IC520M with a CVD-applied TiCN coating. It is designed for use in indexable milling cutters and delivers four cutting edges per insert. The insert measures 3/8 inch in inscribed circle diameter, 0.375 inches in width and length, and 0.125 inches in thickness. With a positive rake geometry and a T-Land cutting edge style, it is built for productive face and shoulder milling applications. Licensed machinists and tooling technicians install these inserts in compatible milling cutter bodies as part of routine insert indexing and replacement.

This insert is suited for milling steel, stainless steel, and cast iron — ISO material groups P, M, and K. It fits the ISCAR ISCARMILL series and is specifically listed for cutter series compatibility E45. Maximum depth of cut is 0.22 inches (5.60 mm). The neutral hand orientation allows use in both conventional and climb milling setups without handedness restrictions. Typical applications include face milling, shoulder milling, and general-purpose material removal in production and job-shop environments across light industrial and heavy manufacturing settings.

Key Features

• IC520M grade with CVD TiCN coating for wear resistance in steel and cast iron machining
• Four usable cutting edges per insert for extended tool economy
• Positive rake with T-Land edge prep balances sharpness and edge strength
• Neutral hand design — compatible with both climb and conventional milling
• Maximum depth of cut 0.22 inches (5.60 mm)
• Screw-type insert holding method for secure, repeatable seating
• Conforms to ANSI and ISO 13399 standards; ANSI code SDMT 32AD-N IC520M, ISO code SDMT 0903AD-N

Compatibility

Compatible with ISCAR ISCARMILL series cutter bodies, specifically listed for cutter series E45. Insert style SDMT with a 90-degree included angle. Verify cutter body pocket specifications against insert dimensions before installation.

Installation Notes
