Iscar 5600122 Milling Insert Sdmt 0903AD-N IC50M Carbide

Product Description

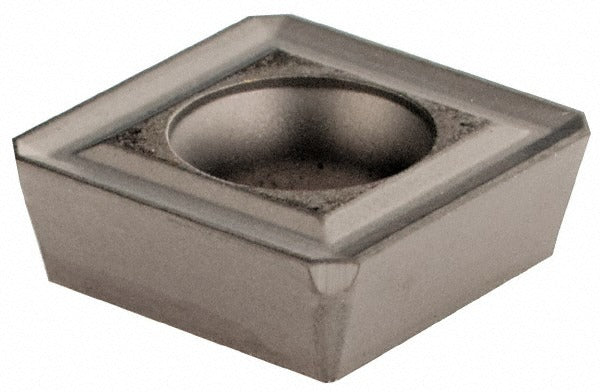

The ISCAR 5600122 is a solid carbide milling insert carrying the ISO designation SDMT 0903AD-N and the ANSI designation SDMT 32AD-N, both in grade IC50M. The insert features a square shape with a 90-degree included angle, four cutting edges, and a neutral hand orientation. It is uncoated (bright finish), making it well suited for applications where a coating-free substrate performs best. The T-Land cutting edge style and positive rake geometry reduce cutting forces during milling. At 0.125 inches thick with a 0.375-inch inscribed circle, this insert is a compact, single-sided tool designed for precision milling of steel and stainless steel.

This insert is intended for milling operations on steel and stainless steel workpieces, covering material grade codes P and M. It belongs to the ISCARMILL series and is compatible with E45 cutter bodies that accept screw-held SDMT-style inserts. Typical applications include face milling, shoulder milling, and general-purpose milling in job shop and production environments. Installation is performed by machinists and toolroom technicians on CNC machining centers and manual milling machines. The maximum depth of cut is 0.22 inches (5.60 mm).

Key Features

• Solid carbide substrate in grade IC50M, uncoated for direct cutting performance on steel and stainless steel
• Square insert shape with 90-degree included angle and four usable cutting edges for economical tooling cost
• Positive rake geometry with T-Land cutting edge style reduces cutting forces and heat generation
• Neutral hand orientation compatible with standard E45 series cutter bodies using screw-held insert mounting
• Maximum depth of cut of 0.22 inches (5.60 mm) with a cutting edge effective length of 0.3748 inches
• Conforms to ANSI and ISO 13399 standards for insert geometry and identification

Compatibility

Designed for use in E45 series ISCARMILL cutter bodies that accept SDMT-style screw-held inserts. Compatible with milling operations on steel and stainless steel workpieces (ISO material codes P and M).

Installation Notes

This insert is installed and replaced by machinists or toolroom technicians. Power down and de-energize the machine spindle completely before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the cutter body manufacturer's specified torque. Inspect the insert pocket for chips or debris before seating a new insert to ensure proper contact and runout.
