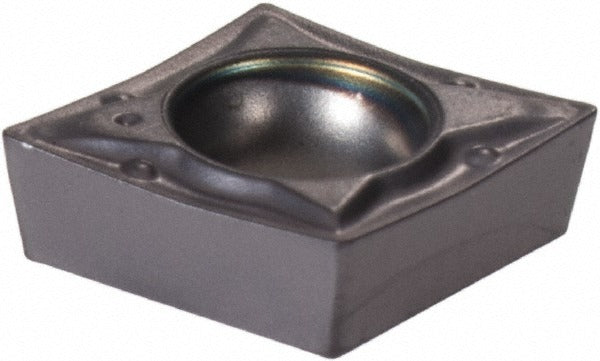

Iscar 5592941 Turning Insert Ccmt 2-0-PF IC907 Carbide

Product Description

The ISCAR 5592941 is a solid carbide turning insert in the CCMT 2-0-PF geometry, part of the Isoturn series. It carries a PVD-applied TiN and TiAlN multilayer coating over a submicron carbide substrate, which supports higher cutting speeds and extended tool life in continuous and light interrupted cuts. The insert features an 80-degree diamond shape with a positive rake angle and a PF chip breaker. Corner radius measures 0.008 inches, and the inscribed circle is 0.25 inches. This insert is used by machinists and CNC turning specialists working in production and job shop environments.

The CCMT 2-0-PF in grade IC907 is suited for turning operations across a broad range of workpiece materials, including steel (P), stainless steel (M), cast iron (K), non-ferrous metals (N), heat-resistant superalloys (S), and hardened materials (H). The PF chip breaker geometry promotes effective chip control at light to medium depths of cut, with a maximum depth of cut of 0.098 inches (2.49 mm). It is a screw-held insert designed for use in compatible CCMT-style turning toolholders commonly found on CNC lathes and manual turning centers.

Key Features

• PVD TiN and TiAlN coating over submicron solid carbide substrate for wear resistance and thermal stability
• 80-degree diamond insert shape with positive rake for reduced cutting forces
• PF chip breaker for controlled chip evacuation at light to medium depths of cut
• Screw-held mounting for secure, repeatable insert indexing
• Conforms to ISO 13399 standards for tooling data interoperability
• Multi-use insert compatible with a wide range of ISO material groups: H, K, M, N, P, and S

Compatibility

Designed for use in CCMT-style screw-clamp turning toolholders. ISO designation CCMT 2-0-PF with clearance code C and tolerance code M. Compatible with toolholders that accept a 0.25-inch inscribed circle, 0.094-inch thick CCMT insert with a 0.110-inch hole diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret is locked before indexing or replacing inserts. Use the correct torque driver for the clamping screw to avoid insert movement or screw damage. Verify toolholder pocket and seating surface are clean and free of chips before seating the insert.
