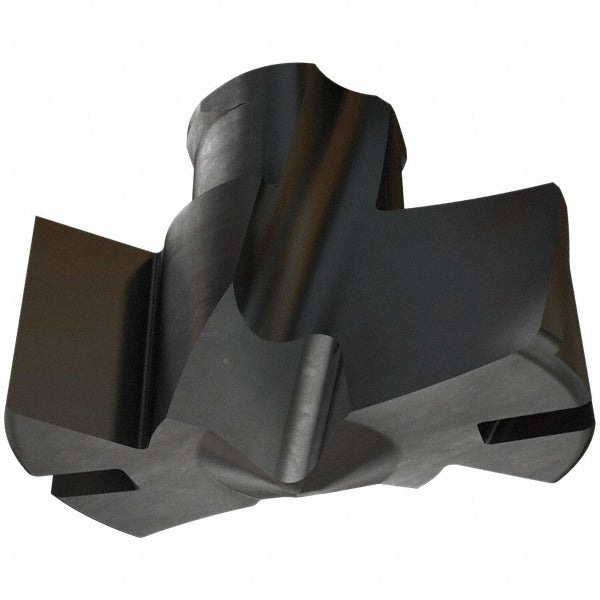

Iscar 5568103 Carbide Replaceable Tip Drill 0.480 Inch

Product Description

The ISCAR 5568103 is a carbide replaceable tip drill from the FCP series, designed for precision drilling in metal fabrication and machining operations. Built with a solid carbide tip in IC908 submicron grade, this insert delivers consistent performance in demanding cutting environments. The tip features a TiAlN PVD coating applied via physical vapor deposition, providing thermal resistance and extended tool life. With a cutting diameter of 0.480 inches and a 140-degree included angle drill point, the 5568103 is suited for high-accuracy through and flat-bottom hole applications. Two spiral flutes with a slow spiral geometry and web thinned point reduce entry forces and improve chip evacuation during the cut.

This replaceable tip drill is intended for use on CNC machining centers and similar equipment in industrial and manufacturing environments. It is engineered primarily for cutting steel and cast iron, with secondary suitability for stainless steel, super-alloys, titanium, and hard materials. The FCP series insert seat size 12 platform accepts this tip as a direct replaceable component, making it a cost-effective alternative to solid drill replacement when the cutting edge is worn. Installation is typically performed by toolroom technicians or CNC machinists as part of scheduled insert change cycles.

Key Features

• Solid carbide IC908 submicron grade tip for extended wear resistance in ferrous materials
• TiAlN PVD coating provides heat resistance during high-speed steel and cast iron drilling
• 140-degree included angle with web thinned point reduces thrust force at entry
• Slow spiral flute geometry promotes controlled chip flow in difficult-to-machine alloys
• Flat bottom style tip suitable for flat-bottomed and through-hole drilling operations
• Compliant with ISO 13399 tooling data standards for digital tool management integration

Compatibility

Designed for use with FCP series drill bodies accepting insert seat size 12. Primary workpiece materials include steel (ISO P) and cast iron (ISO K). Secondary workpiece materials include stainless steel (ISO M), super-alloys and titanium (ISO S), and hard materials (ISO H). Refer to ISCAR FCP series documentation to confirm body compatibility before ordering.

Installation Notes

Replaceable tip drills of this type are installed and torqued by trained machinists or toolroom personnel using the manufacturer-specified torque wrench for the FCP seat interface. Always ensure the drill body and seat are clean and free of chips or debris before seating the tip. Power down or lock out the spindle completely before performing any tip change. Do not exceed the drill body manufacturer rated speeds and feeds for the selected workpiece material.
