Iscar 5567990 Carbide Replaceable Tip Drill 0.654 in Hcp-iq

Product Description

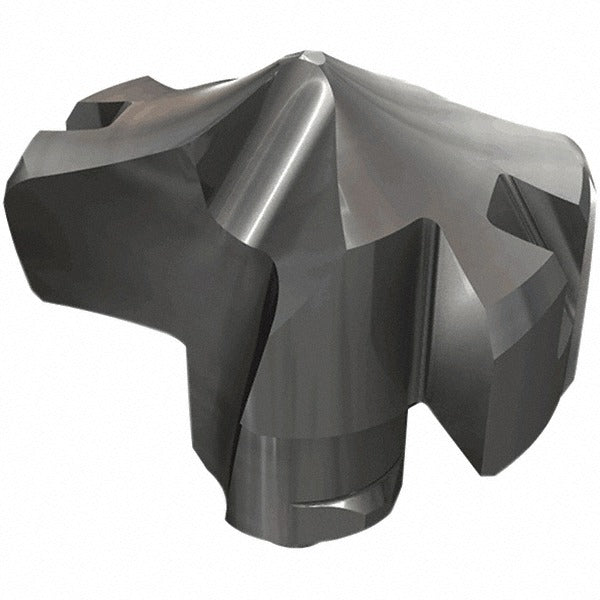

The ISCAR 5567990 is a solid carbide replaceable tip drill in the HCP-IQ series, designed for high-productivity hole making in steel, cast iron, and related materials. The drill tip measures 0.654 inches (16.61 mm) in cutting diameter with a 9.3 mm height and carries an IC908 manufacturer grade with a PVD-applied TiAlN coating. The 137-degree self-centering point geometry and web-thinned design reduce entry thrust and improve chip evacuation. This insert is clamped into compatible HCP-IQ drill bodies and is installed by machinists and toolroom technicians in CNC turning and machining center applications.

The 5567990 tip is suited for hole making, chamfering, and general drilling operations in production environments. Primary workpiece materials are steel (ISO P) and cast iron (ISO K). Secondary material compatibility extends to stainless steel (ISO M), superalloys and titanium (ISO S), and hard materials (ISO H), making this tip a versatile option across a range of ferrous and difficult-to-machine workpieces. The helical, regular-spiral flute configuration with a 5.00 mm flute length supports controlled chip flow at moderate cutting depths.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for wear resistance in steel and cast iron
• 137-degree included angle with self-centering point eliminates pre-spotting in most applications
• Web-thinned geometry reduces axial thrust at entry
• Helical, 2-flute design promotes chip evacuation in short-flute replaceable tip format
• Clamp-style insert holding for repeatable seating in HCP-IQ bodies
• Compliant with ISO 13399 tool data standards for CAM and tooling management integration

Compatibility

Designed for use with compatible ISCAR HCP-IQ series drill bodies accepting insert seat size 16. ISO number reference is HCP 166-IQ. Verify body and seat size before ordering.

Installation Notes
