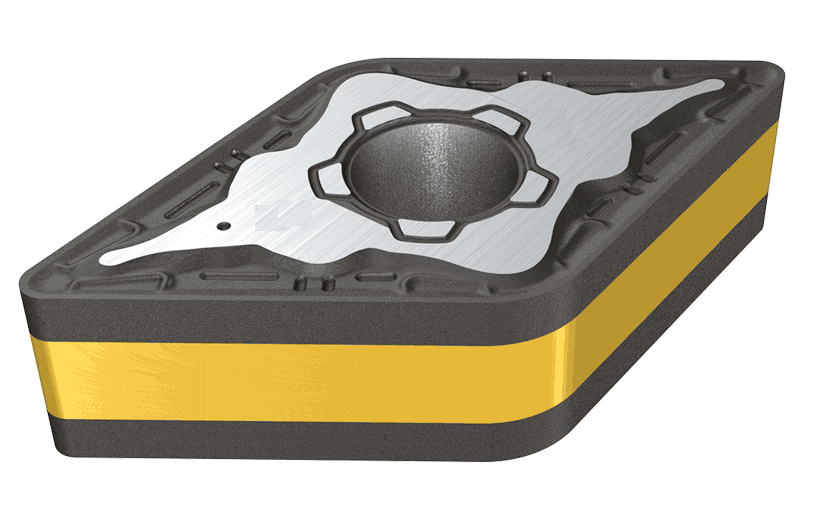

Iscar 5567632 DNMG-432-M3P IC8250 CARB INSERT

Product Description

The Iscar DNMG-432-M3P IC8250 Carb Insert is designed for effective cutting in various applications. This insert is made from high-quality carbide and is suitable for use on stainless steel and steel materials. The insert features a 55-degree diamond shape with a negative clearance angle which enhances its performance during both finishing and roughing processes.

• Insert Style: DNMG
• Insert Material: Carbide
• Machining Application: Finishing and Roughing

Product Highlights

This insert is designed for durability and efficiency in cutting. Its robust construction allows it to withstand high-speed machining.

Product Information

Standard Information

• Brand: Iscar
• Insert Shape: 55-degree Diamond

Technical Specifications

• Clearance Angle: Negative
• Size: 0.5000 inches
• Corner Radius: 0.0310 inches
• Insert Thickness: 0.1870 inches
• Insert Edge Length: 0.6100 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.2360 inches
• Min Feed: 0.0059 inches
• Max Feed: 0.0197 inches
