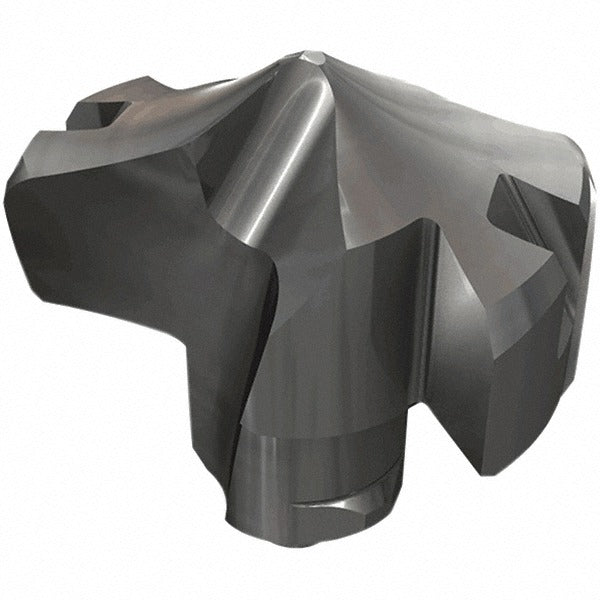

Iscar 5567347 Carbide Replaceable Tip Drill 0.630 in IC908

Product Description

The ISCAR 5567347 is a carbide replaceable tip drill designed for precision hole-making in demanding industrial applications. This tip belongs to the HCP-IQ series and carries the IC908 submicron carbide grade with a PVD-applied TiAlN finish. The cutting diameter measures 0.630 inches, the tip height is 0.366 inches (9.30 mm), and the functional length is 0.212 inches. The 137-degree included angle delivers a self-centering point that reduces the need for a pilot hole. With two slow-spiral flutes and a web-thinned geometry, this tip is engineered for controlled chip evacuation in deep-hole drilling operations. It is installed and replaced by machinists and toolroom technicians working with precision drilling platforms.

This replaceable tip is suited for drilling steel and cast iron as primary workpiece materials, designated under ISO material codes P and K. Secondary applications include stainless steel, super-alloys, titanium, and hard materials (M, S, and H codes). The HCP-IQ series is built for use in CNC machining centers and deep-hole drilling setups where frequent tip replacement reduces downtime compared to regrinding solid drills. The self-centering point style and slow-spiral flute configuration make this tip well-matched to interrupted cuts and materials that demand consistent tool life and hole quality.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for extended tool life in ferrous materials
• 137-degree self-centering drill point eliminates the need for a center drill in most setups
• Web-thinned geometry reduces thrust force and improves chip flow
• Two slow-spiral flutes suited for deep-hole applications in steel and cast iron
• Replaceable tip design allows fast tip changes at the machine without removing the drill body
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Designed as an OEM-style replacement tip for HCP-IQ series drill bodies with a 16 mm insert seat size. Compatible with workpiece materials including steel, cast iron, stainless steel, super-alloys, titanium, and hard materials per ISO material codes P, K, M, S, and H.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle before removing or seating the tip. The tip is secured by a twist-style holding method — follow the drill body manufacturer's torque and seating procedure for the specific HCP-IQ body. Inspect the insert seat for debris or damage before installing a new tip to ensure proper seating and runout.
