Iscar 5567165 Replaceable Drill Tip 0.6260 in IC907

Product Description

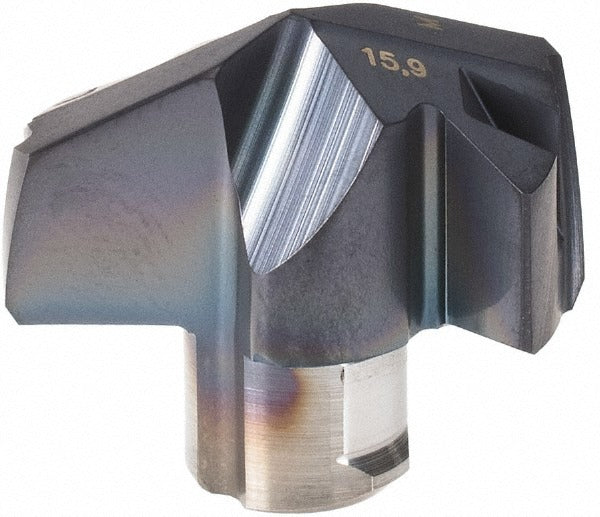

The ISCAR 5567165 is a replaceable drill tip designed for the ICM modular drilling system. It features a 0.6260 inch (16.00 mm) cutting diameter with a 140 degree drill point angle and two helical flutes. The tip is manufactured from solid carbide with a submicron grain material grade and finished with a PVD-applied TiAlN coating. Seat size 15 indexes the tip securely into compatible ICM-series holders using a clamp-style insert holding method. This tip is intended for precision hole-making and drilling operations performed by machining professionals in metalworking environments.

The 5567165 is engineered primarily for cutting stainless steel, superalloys, and titanium, and is also rated for secondary use in steel, cast iron, and hard materials. Its web-thinned geometry and regular spiral flute design support consistent chip evacuation across these material groups. Typical applications include production drilling on CNC machining centers where modular drill systems are used to reduce tooling changeover time while maintaining tight hole tolerances.

Key Features

• 0.6260 inch cutting diameter with 140 degree standard point angle for controlled entry and accurate hole geometry
• Solid carbide construction with submicron material grade for wear resistance in demanding alloys
• TiAlN coating applied via PVD process for thermal and oxidation resistance at elevated cutting temperatures
• Web-thinned geometry reduces cutting forces and improves penetration in stainless steel and titanium
• Two helical flutes promote efficient chip evacuation during through-hole and blind-hole drilling
• Clamp-style insert holding at seat size 15 enables fast, repeatable tip indexing without full tool replacement
• Conforms to ISO 13399 tooling data standards for compatibility with digital tool management systems

Compatibility

Designed for use in ISCAR ICM-series modular drill holders with seat size 15, per ISO number ICM 159. Verify holder seat size and series designation before installation. No additional compatible model numbers were specified in the product data.

Installation Notes

Replaceable drill tip installation should be performed by a qualified machinist or tooling technician with the machine fully powered down and spindle locked. Use the appropriate ISCAR torque key or clamping tool for the ICM seat to seat the tip properly without over-torquing the clamping mechanism. Inspect the seat and coolant ports on the holder for chips or debris before seating a new tip. This tip does not support coolant-through delivery; confirm the machining strategy accounts for external coolant or air blast chip clearing.
