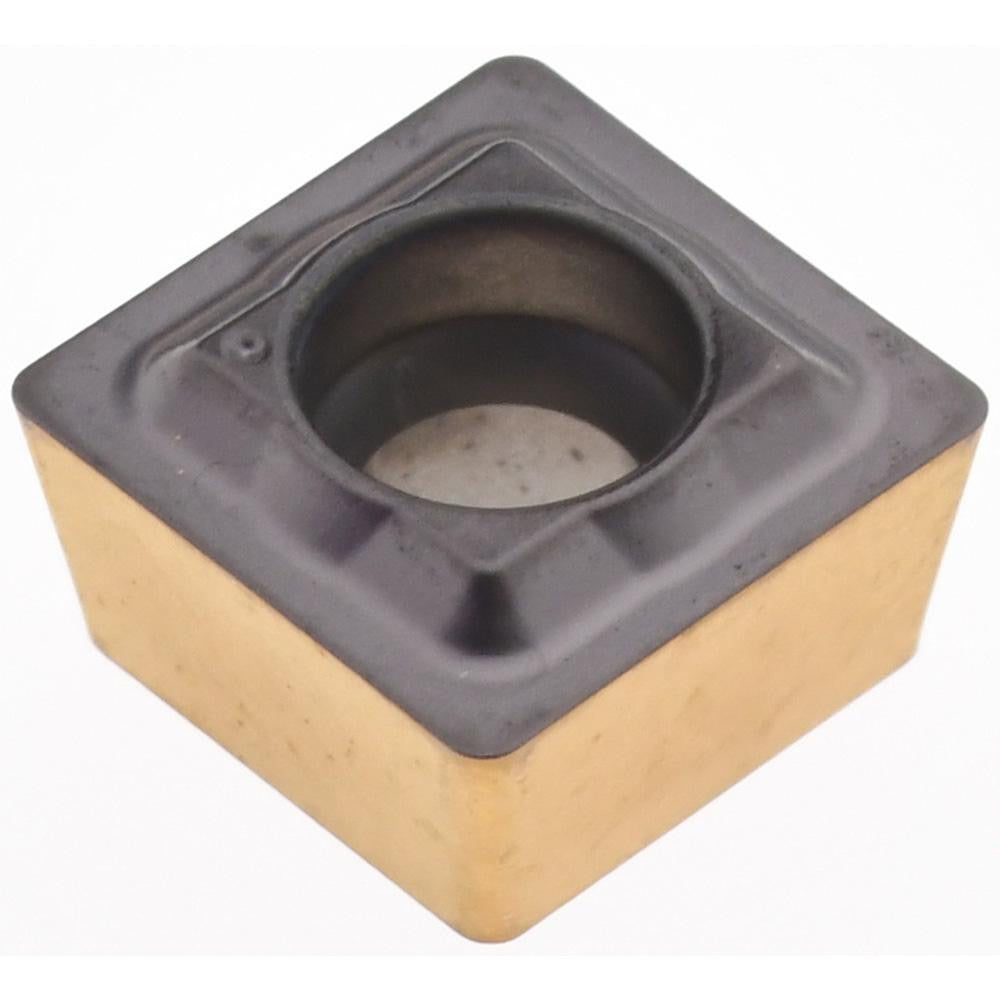

Iscar 5567136 SOMX06HD IC808 Indexable Drill Insert

Product Description

The ISCAR 5567136 is a square indexable drill insert designed for use in the DR-TWIST indexable drill series. Manufactured from fine-grain solid carbide and coated via a PVD process with the IC808 grade, this insert delivers consistent cutting performance across a broad range of workpiece materials. The insert features a 6.20 mm (0.2440 inch) inscribed circle, a 0.1260-inch thickness, and a 0.41 mm corner radius. The HD chipbreaker geometry supports aggressive chip control during drilling operations. Licensed machinists and CNC operators install this type of insert as a direct replacement consumable during routine tool maintenance.

This insert is suited for universal material applications, including ISO material groups H, K, M, P, and S, covering hardened steels, cast irons, stainless and general steels, and heat-resistant superalloys. It is sized to the 060304 insert size code per ISO 13399 standards, making it applicable across a wide range of production drilling environments, including both manual indexing and automated tool-change setups in horizontal and vertical machining centers. It fits drilling tools within the DR-TWIST product series that accept the SOMX insert style.

Key Features

• IC808 grade PVD-coated fine-grain solid carbide for extended wear resistance
• HD chipbreaker geometry for improved chip evacuation during deep drilling
• Square SOMX insert style with 0.41 mm corner radius for controlled edge engagement
• Universal material compatibility across ISO groups H, K, M, P, and S
• Compliant with ISO 13399 insert identification standards
• DR-TWIST series fitment with 060304 insert size code

Compatibility

Designed for use in ISCAR DR-TWIST series indexable drills that accept the SOMX insert style in insert size 060304. Compatible with ISO material groups H, K, M, P, and S as designated by the manufacturer.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC tooling technician. Always de-energize and lock out the machine before accessing the tool holder. Use the correct torx or hex key specified by the tool holder manufacturer when seating the insert — do not overtighten the clamping screw. Inspect the insert pocket for debris or damage before seating a new insert to ensure proper seating and runout.
