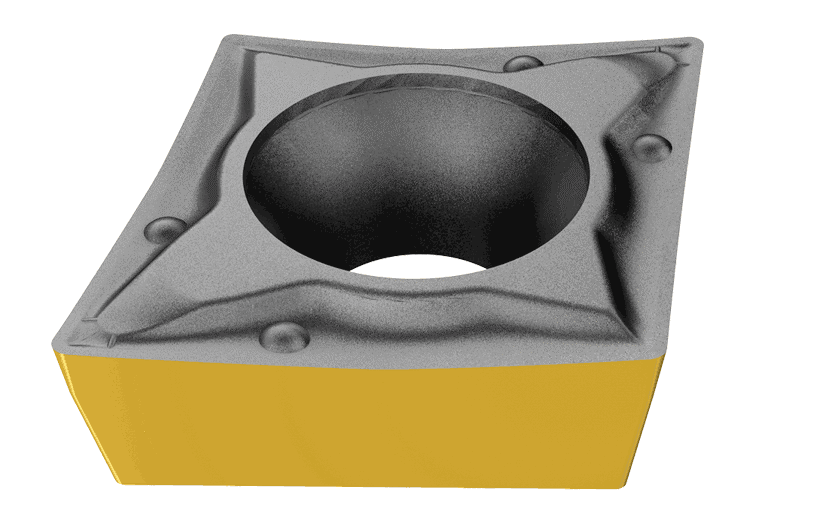

Iscar 5566992 CCMT-3-1-PF IC6015 Carb Insert Replacement MPN

Product Description

The Iscar 5566992 CCMT-3-1-PF IC6015 Carb Insert is suitable for a variety of machining applications, primarily designed for stainless steel. This insert, known as CCMT-32.51, boasts key features that enhance its efficiency.

• Insert style: CCMT
• Insert material: Carbide
• Machining application: Fine Finishing-Medium

Product Highlights

The CCMT-3-1-PF IC6015 insert is effective for precise cutting in metalworking, providing reliable performance for machining tasks.

Product Information

Standard Information

• Brand: Iscar
• Part #: CCMT-3-1-PF-IC6015

Technical Specifications

• Insert Shape: 80° Diamond
• Clearance Angle: 7° Positive
• Size: 0.3750 inches
• Corner Radius: 0.0160 inches
• Insert Thickness: 0.1560 inches
• Insert Edge Length: 0.3820 inches
• Min Depth of Cut: 0.0200 inches
• Max Depth of Cut: 0.1380 inches
• Min Feed: 0.0020 inches
• Max Feed: 0.0138 inches
• Insert Coating: TiCN+Al2O3+TiN
• Work Material: Stainless Steel
