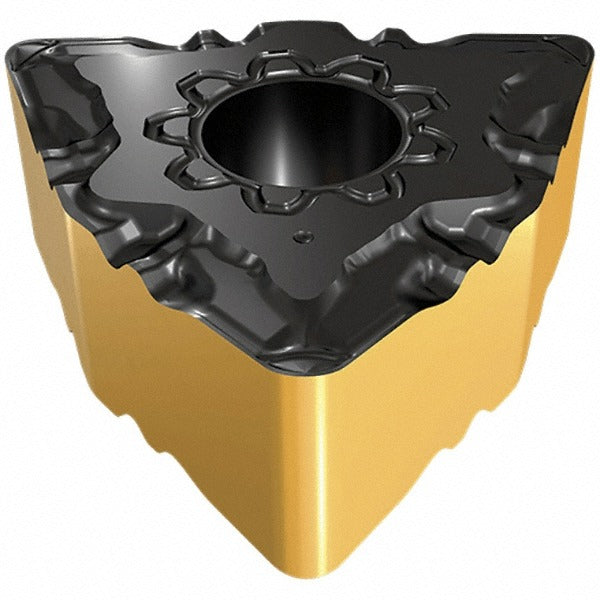

Iscar 5566846 WNMG431-F3P IC8150 Turning Insert Solid Carbide

Product Description

The ISCAR 5566846 is a solid carbide turning insert designed for precision metal cutting in CNC and manual lathe applications. Manufactured to ISO 13399 standards, this insert features a WNMG 431-F3P geometry with an 80-degree trigon shape and an F3P chip breaker. The multilayer CVD coating stack of TiCN, Al2O3, TiCN, and TiN provides wear resistance and thermal stability during continuous and interrupted cuts. The insert measures 8.71 mm (0.343 inches) in length with a 0.5-inch inscribed circle and a 1/64-inch (0.0156-inch) corner radius. It is double-ended, allowing use of both cutting edges before replacement. This insert is part of the ISCAR Isoturn series and is intended for installation by machinists and CNC tooling professionals.

This insert is suited for turning cast iron and steel workpieces in both roughing and finishing operations. The positive rake geometry and F3P chip breaker promote efficient chip control across a range of feed rates and depths of cut, with a maximum depth of cut of 3.51 mm (0.138 inches). Typical applications include shaft turning, facing, and profiling on CNC lathes and turning centers in job shop and production environments. The IC8150 grade is optimized for primary workpiece material codes K (cast iron) and P (steel).

Key Features

• CVD multilayer coating: TiCN, Al2O3, TiCN, TiN for wear and thermal resistance
• 80-degree trigon insert shape (W) with positive rake for reduced cutting forces
• F3P chip breaker geometry for controlled chip evacuation on cast iron and steel
• Double-ended insert — two usable cutting edges per insert
• Compliant with ISO 13399 tooling data standards
• Maximum depth of cut of 3.51 mm (0.138 inches)

Compatibility

Designed as an OEM-style replacement turning insert for ISCAR Isoturn series toolholders accepting WNMG 431 geometry inserts with clamp and pin holding method.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the appropriate torx or clamp screw driver specified for the toolholder to secure the insert; do not overtighten the clamp screw. Inspect the toolholder seat and clamp for wear or debris before installing a new insert.
