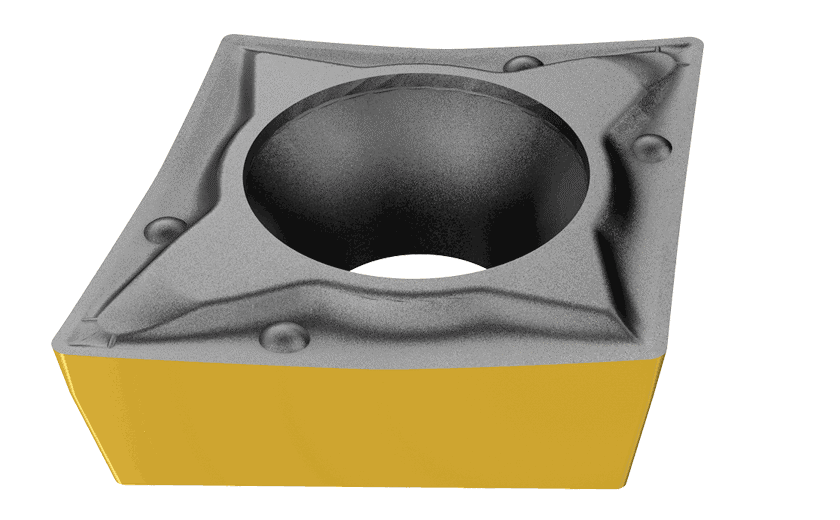

Iscar 5566751 CCMT-2-1-PF IC806 Carb Insert

Product Description

The Iscar CCMT-2-1-PF IC806 Carb Insert is designed for high-efficiency turning applications. This insert is made from carbide, providing durability and longevity in machining operations. The CCMT style offers versatility in various turning tasks.

• Insert Shape: 80-degree diamond
• Clearance Angle: 7-degree positive
• Coating: TiAlN + TiN for enhanced performance

Product Highlights

This carb insert is suitable for medium to semi-roughing machining applications, making it ideal for high-temperature work materials.

Product Information

Standard Information

• Brand: Iscar
• Insert Material: Carbide

Technical Specifications

• Insert Style: CCMT
• Size: 0.2500
• Corner Radius: 0.0160
• Insert Thickness: 0.0940
• Insert Edge Length: 0.2480
• Min Depth of Cut: 0.0160
• Max Depth of Cut: 0.0980
• Min Feed: 0.0016
• Max Feed: 0.0118
