Iscar 5566707 Carbide Replaceable Tip Drill 0.264 in

Product Description

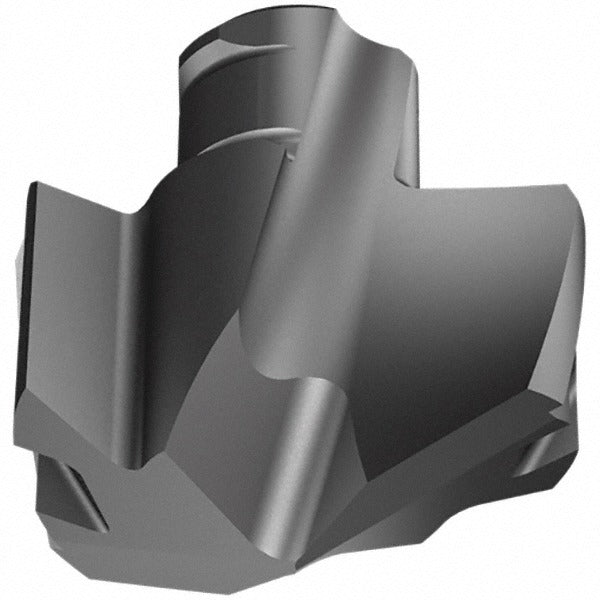

The ISCAR 5566707 is a solid carbide replaceable tip drill insert in the ICP series, designed to fit modular drill bodies used in precision hole-making operations. Running the IC908 grade with a PVD-applied TiAlN coating, this insert delivers consistent edge wear resistance in demanding cutting conditions. It measures 0.264 inches in cutting diameter and 0.169 inches in height. The 140-degree included angle and web-thinned point geometry reduce entry thrust and improve centering on entry. Two slow-spiral flutes with a honed cutting edge promote chip evacuation and surface finish. Licensed machinists and CNC operators in production and job-shop environments are the primary installers.

This insert is suited for drilling steel as a primary workpiece material and is also rated for stainless steel, cast iron, super-alloys and titanium, and hard materials. The ICP series is designed for short-projection, high-repeatability drilling where replaceable-tip tooling reduces downtime versus brazed or solid-drill regrinding cycles. The 140-degree point geometry is appropriate for through-holes and blind-hole applications where accurate flat-bottom approximation is not required. The honed cutting edge style is well matched to interrupted cuts and abrasive workpiece materials.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for wear and heat resistance
• 0.264 inch cutting diameter with a 140-degree included drill point angle
• Web-thinned, honed cutting edge reduces entry thrust and extends edge life
• Two slow-spiral flutes support controlled chip formation in short-hole drilling
• ICP series insert seat size 6.5 for modular replaceable-tip drill body compatibility
• Conforms to ISO 13399 tooling data standards for integration with CAM and tool management systems

Compatibility

Designed as an OEM-style replaceable tip insert for ICP series modular drill bodies accepting insert seat size 6.5. Specific compatible drill body part numbers were not provided in the product data; consult the ISCAR ICP series catalog to confirm body-to-insert fitment before ordering.

Installation Notes
