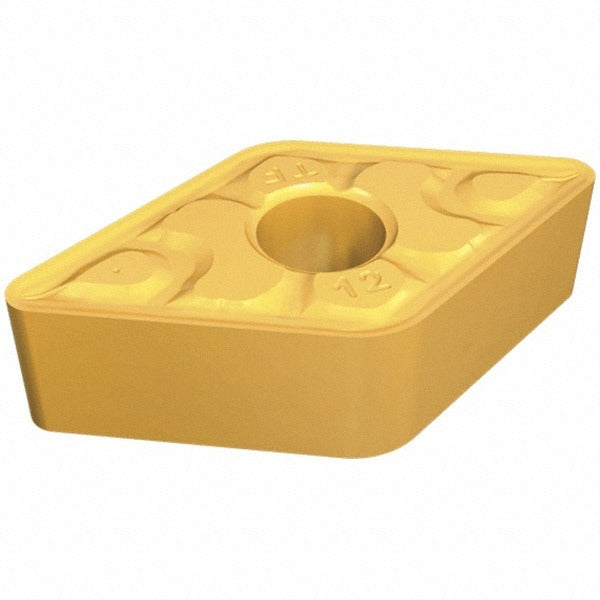

Iscar 5509994 DNMG442TF IC806 Turning Insert Solid Carbide

Product Description

The ISCAR 5509994 is a solid carbide turning insert with DNMG style geometry and IC806 manufacturer grade, designed for precision metal turning on CNC and manual lathes. It features a TiAlN coating applied via PVD process, which provides excellent heat resistance and wear performance in demanding cutting environments. The insert has a 55-degree diamond shape, a 1/2-inch inscribed circle, and a 1/32-inch corner radius. With a positive rake geometry and TF chip breaker design, it promotes controlled chip flow and reduced cutting forces. Licensed trades machinists and CNC operators install this insert in compatible toolholders for finishing and semi-finishing operations.

This insert is engineered for cutting superalloys and titanium, making it well-suited for aerospace, medical, and high-performance industrial machining applications. The IC806 submicron carbide grade with TiAlN PVD coating is specifically formulated to hold up under the high temperatures and abrasive conditions generated when machining these difficult materials. It is used in turning operations where tight tolerances and surface finish consistency are required. The DNMG insert style uses a clamp and pin holding method for secure, repeatable seating in standard DNMG-compatible toolholders.

Key Features

• TiAlN PVD coating on IC806 submicron solid carbide grade for heat and wear resistance
• 55-degree diamond insert shape with positive rake for reduced cutting forces
• TF chip breaker promotes controlled chip evacuation during turning
• 1/32-inch corner radius suitable for finishing and semi-finishing passes
• Maximum depth of cut of 0.138 inches (3.50 mm)
• Clamp and pin holding method for secure toolholder engagement

Compatibility

Designed as an OEM-style replacement turning insert for use in DNMG-compatible toolholders. Primary workpiece materials are superalloys and titanium (ISO material code S). Conforms to ISO 13399 standards.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine before changing inserts. Seat the insert fully against the toolholder pocket and verify the clamp and pin are properly engaged before resuming operation. Do not exceed the recommended depth of cut for the insert size and grade.
