Iscar 5509637 Replaceable Drill Tip 0.7680 in 140 Deg IC908

Product Description

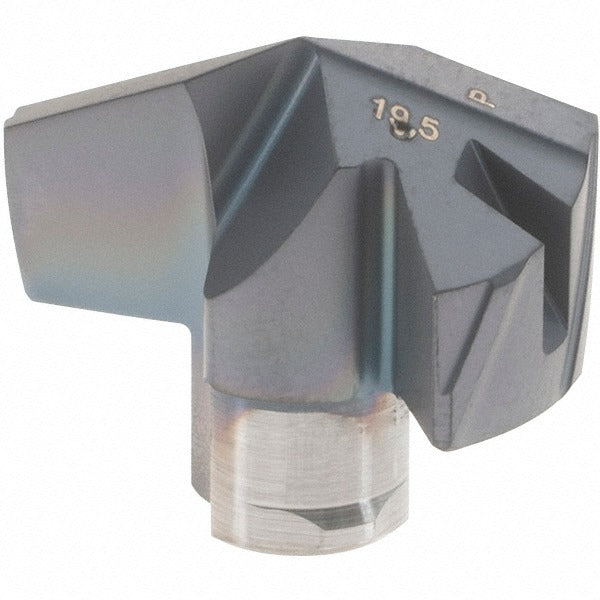

The ISCAR 5509637 is a replaceable drill tip from the ICP-2M series, designed for use in modular indexable drilling systems. This solid carbide tip measures 0.7680 inches (20.00 mm) in cutting diameter and features a 140-degree point angle with a standard point type and helical flute geometry. The TiAlN coating is applied via PVD process, providing thermal resistance and wear protection during high-speed drilling into steel and other demanding workpiece materials. Seat size 19 allows the tip to seat securely in compatible ICP-2M drill bodies. The tip is web-thinned to reduce thrust forces and improve chip evacuation. Installation is performed by machining professionals in production and job-shop environments.

This replaceable drill tip is suited for hole making, chamfering, and drilling operations on steel as the primary workpiece material. Secondary workpiece materials include stainless steel, cast iron, superalloys, titanium, and hard materials. The ISO material classification codes P, M, K, S, and H reflect this broad material compatibility. The ICP-2M series is used in CNC machining centers and turning centers where quick tip changeover without removing the drill body from the spindle is required.

Key Features

• Solid carbide construction with submicron grade material for edge strength and wear resistance
• TiAlN coating applied by PVD process for high-temperature and abrasion resistance
• 140-degree point angle with web-thinned geometry reduces entry thrust and improves centering
• Helical, regular-spiral flute configuration with 2 flutes promotes consistent chip flow
• Insert seat size 19 for indexed tip-change without drill body removal
• Compliant with ISO 13399 for tool data representation
• Applicable to hole making, chamfering, and gundrilling operations

Compatibility

Designed for use with ISCAR ICP-2M series modular drill bodies accepting insert seat size 19. ISO number ICP 195-2M. Verify seat size and series designation on the drill body before installation.

Installation Notes

This tip is installed and changed by qualified machinists or CNC tooling technicians. Before changing the tip, confirm the machine spindle is fully stopped and the tool is secured in a vise or tool holder fixture. Use the correct ISCAR clamping key for the ICP-2M seat to avoid damaging the seating surfaces. Do not exceed the recommended cutting parameters for the workpiece material and machine setup as defined by ISCAR tooling data for IC908 grade.
