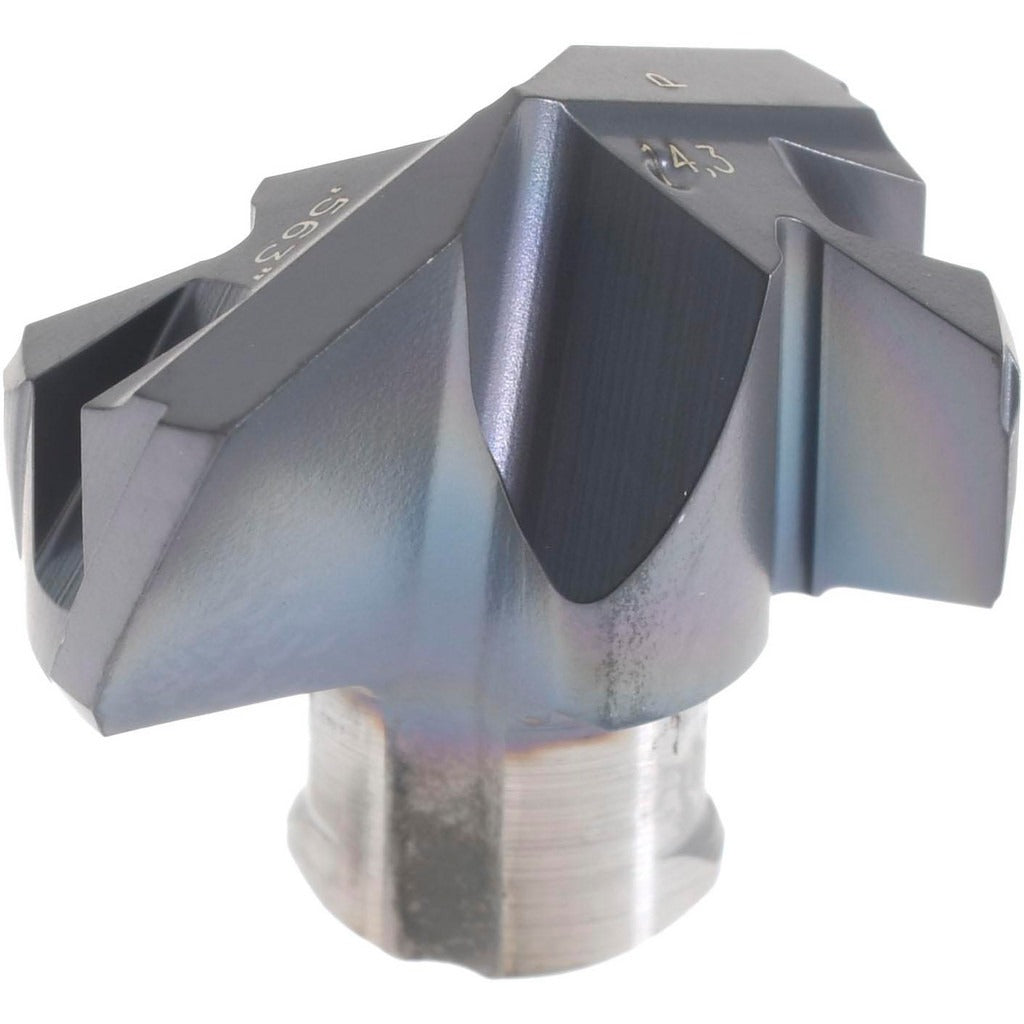

Iscar 5509599 Carbide Replaceable Tip Drill 0.563 in ICP-2M

Product Description

The ISCAR 5509599 is a solid carbide replaceable tip drill in the ICP-2M series, designed for high-performance hole making in metalworking applications. The tip features an IC908 submicron grade with a PVD-applied TiAlN coating, delivering strong wear resistance and thermal stability during interrupted or continuous cuts. It carries a 140-degree included angle with a standard point geometry and helical, regular-spiral flutes. With a cutting diameter of 0.563 inches (14.00 mm) and a functional length of 0.2356 inches, this drill is engineered for precision fitment into compatible ICP-2M drill bodies. Installation is performed by machinists and tooling specialists in production or job-shop environments.

This replaceable tip is suited for drilling and chamfering operations in steel as its primary workpiece material, with rated capability in stainless steel, cast iron, superalloys, titanium, and hard materials. The ICP-2M series is commonly used in CNC machining centers where quick tip changes minimize downtime. The insert seat size is 14, and the tip is held by a clamp mechanism. This item meets ISO 13399 tooling data standards and carries the ISO number ICP 143-2M, making it compatible with tool assembly and digital library systems used in modern CAM workflows.

Key Features

• IC908 submicron carbide grade with PVD TiAlN coating for extended tool life in steel and stainless
• 140-degree included angle with standard point geometry for accurate entry and reduced thrust
• Helical regular-spiral flutes with web-thinned geometry for improved chip evacuation
• Clamp-type insert holding for secure tip retention under high feed rates
• Rated for hole making, chamfering, and drilling across P, M, K, S, and H workpiece material groups
• Complies with ISO 13399 tooling data standards

Compatibility

Designed for use with ICP-2M series replaceable tip drill bodies accepting a size 14 insert seat. Compatible workpiece materials include steel (P), stainless steel (M), cast iron (K), superalloys and titanium (S), and hard materials (H) per ISO material group classifications.

Installation Notes

Replaceable tip drills of this type are installed and changed by machinists or tooling technicians following machine lockout and spindle stop procedures. Ensure the insert seat and clamping surfaces are clean and free of chips before seating the tip. Follow the drill body manufacturer torque guidelines for the clamping screw using the appropriate Torx or hex key. Do not use damaged or worn insert seats, as improper seating will affect runout and hole quality.
