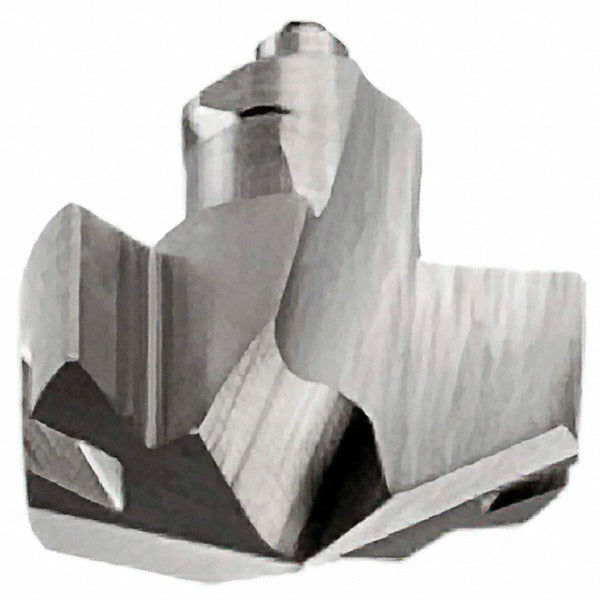

Iscar 5509180 Replaceable Drill Tip 31/32 Inch Carbide

Product Description

The ISCAR 5509180 is a replaceable drill tip designed for use with modular drill bodies in the ICM series. It features a 31/32 inch (0.9690 inch) cutting diameter and is ground from solid carbide using the IC908 submicron grade. A PVD-applied TiAlN coating reduces heat buildup and edge wear during aggressive cuts. The 140-degree drill point angle and web-thinned, T-Land geometry promote clean entry and reduced thrust in tough materials. Licensed machinists and tooling technicians working in precision metalworking or aerospace environments are the primary installers of this tip.

This drill tip is engineered for primary use in stainless steel, superalloys, and titanium (ISO material codes M and S). Secondary workpiece suitability extends to steel, cast iron, and hard materials (ISO codes P, K, and H). The slow spiral flute design and thinned web point make it well-suited for drilling deep or interrupted cuts in high-strength alloys where chip evacuation and point stability are critical. Typical applications include production drilling on CNC machining centers and multi-axis lathes where quick tip changes reduce downtime.

Key Features

• Solid carbide IC908 submicron grade for high wear resistance in hard and exotic alloys
• PVD TiAlN coating for elevated heat resistance during high-speed or dry cutting
• 140-degree included angle with web-thinned, T-Land geometry for reduced thrust and clean entry
• Slow spiral flute design promotes controlled chip flow in stainless steel and superalloys
• Twist-lock insert holding method for repeatable seating and fast tip replacement
• Conforms to ISO 13399 tooling data standards for compatibility with digital tool management systems

Compatibility

Designed for use with ISCAR ICM series modular drill bodies accepting insert seat size 24. Verify seat size and series designation on the drill body before installation.

Installation Notes

Installation and removal of replaceable drill tips should be performed by qualified tooling technicians or machinists familiar with modular cutting tool systems. Ensure the machine spindle is fully stopped and locked out before changing tips. Use the manufacturer-specified torx or hex key to seat the tip per the twist-lock retention method — do not over-torque or use impact tools. Inspect the insert pocket and seating surfaces for chips or damage before installing a new tip.
