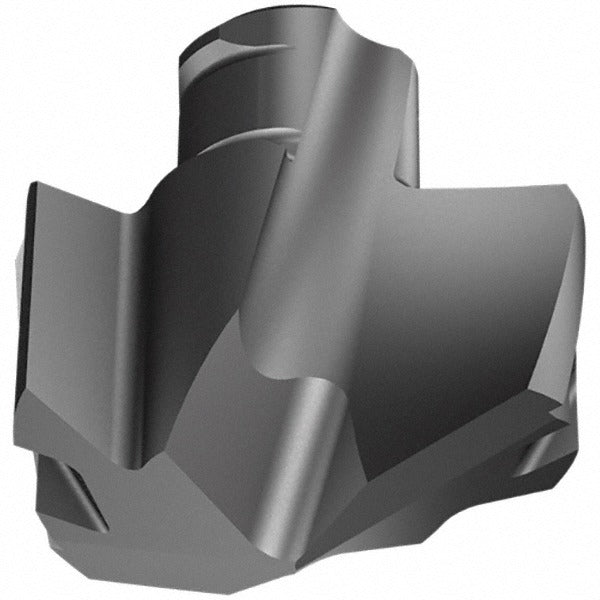

Iscar 5509152 Carbide Replaceable Tip Drill 0.929 in IC908

Product Description

The ISCAR 5509152 is a carbide replaceable tip drill from the ICP series, designed for precision hole-making in metalworking applications. The tip is manufactured from solid carbide with an IC908 submicron grade and a TiAlN coating applied via PVD process, delivering hardness and thermal resistance in demanding cutting conditions. The drill features a 0.929 inch cutting diameter, a 140-degree drill point angle, a slow spiral flute configuration, and a honed cutting edge style. It is primarily used on steel and is suited for production environments where consistent bore quality and tool life are required.

This replaceable tip drill is intended for use in machining centers and CNC drilling operations where the ICP series insert seat size 23 is the specified platform. Primary workpiece material is steel, with secondary capability across stainless steel, cast iron, super-alloys, titanium, and hard materials. The tip follows ISO 13399 standards and carries ISO number ICP 236. It is sold individually with a minimum order quantity of one unit.

Key Features

• Solid carbide IC908 submicron grade tip for extended tool life in steel and difficult alloys
• TiAlN coating via PVD process for thermal resistance and reduced built-up edge
• 140-degree included drill point angle with web thinned point type for improved centering
• Slow spiral flute geometry suited to chip evacuation in deep-hole drilling
• Honed cutting edge style for consistent surface finish
• Compliant with ISO 13399 tooling data standards

Compatibility

Designed for use with ICP series replaceable tip drill bodies requiring insert seat size 23. Compatible with workpiece materials coded P (steel), M (stainless steel), K (cast iron), S (super-alloys and titanium), and H (hard materials) per ISO designation.

Installation Notes

Installation and tip replacement should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and machine is in a safe state before replacing the drill tip. Use the appropriate torque tool and seating method specified for the ICP series twist-hold insert to avoid tip misalignment or seat damage. Verify runout after tip installation before returning the tool to production use.
